SKU:
BP 301-109-PRO
$ 1.151,58
1-2 weeks delivery time
-
+
The Lopolight 301-109-PRO is a red port light with durable black anodized construction, horizontal mounting, IP68 rating, high-quality materials, and 3NM visibility, ideal for vessels over 50 meters.
- Description
- Ask a Question
-

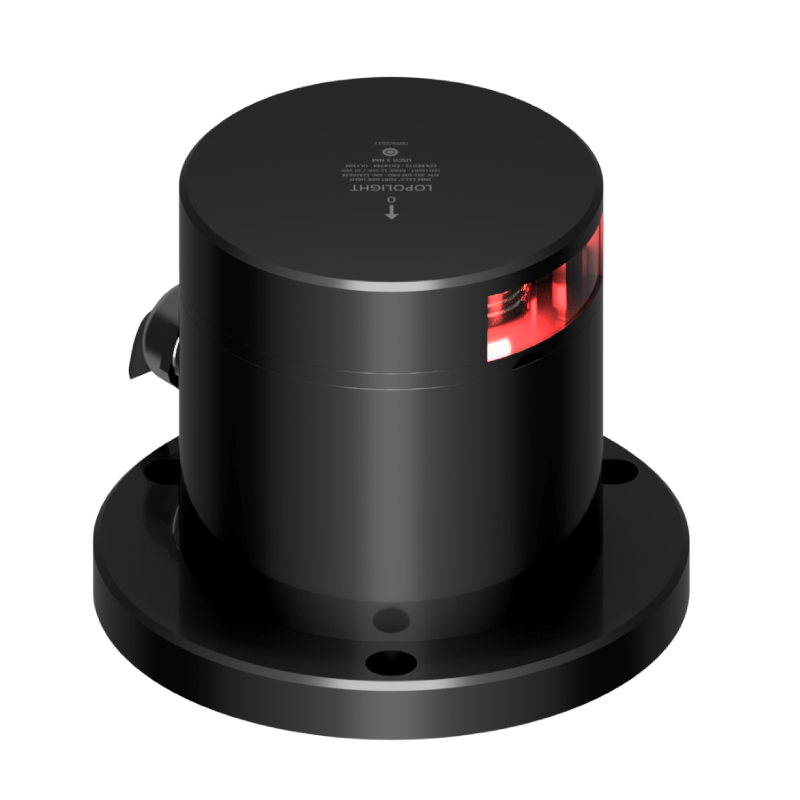

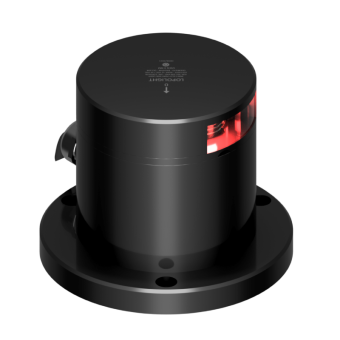

Lopolight 301-109-PRO - Navigation Light 3NM 112,5° Red, Port, Black Anodized
This port navigation light offers durable construction with horizontal mounting and high-quality materials, perfect for vessels over 50 meters.
- Horizontally mounted on 400-037 POM base (IP68)
- Cable exits to the side
- Includes HDPE base plate
- High-quality cable glands for 7-13mm (9/32"-1/2") diameter cables
- Model number: 301-109-PRO
- Light color: Red
- Dimensions: Ø92.5mm x 103.5mm (metric), Ø3.6" x 4" (imperial)
- Certification: DNV
- Intensity: >15cd
- Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3 nautical miles
- Included in package: 1 navigation light, 2 mounting screws (M6 x 8mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32VDC
- EAN: 5704438014206
- UPC Code: 879343014209
- Connection type: Plug connector
- Current consumption: 153mA @ 12VDC, 92mA @ 24VDC
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.09 Kg / 38.44 Oz
- Power draw: 2.2W
-
