SKU:
BP 301-109-PRO-I
$ 1.915,82
1-2 weeks delivery time
-
+
The Lopolight 301-109-PRO-I is a red port navigation light for vessels over 50 meters, featuring built-in de-icing, horizontal IP68 mounting, robust materials, 3NM visibility, and dimmable operation.
- Description
- Ask a Question
-

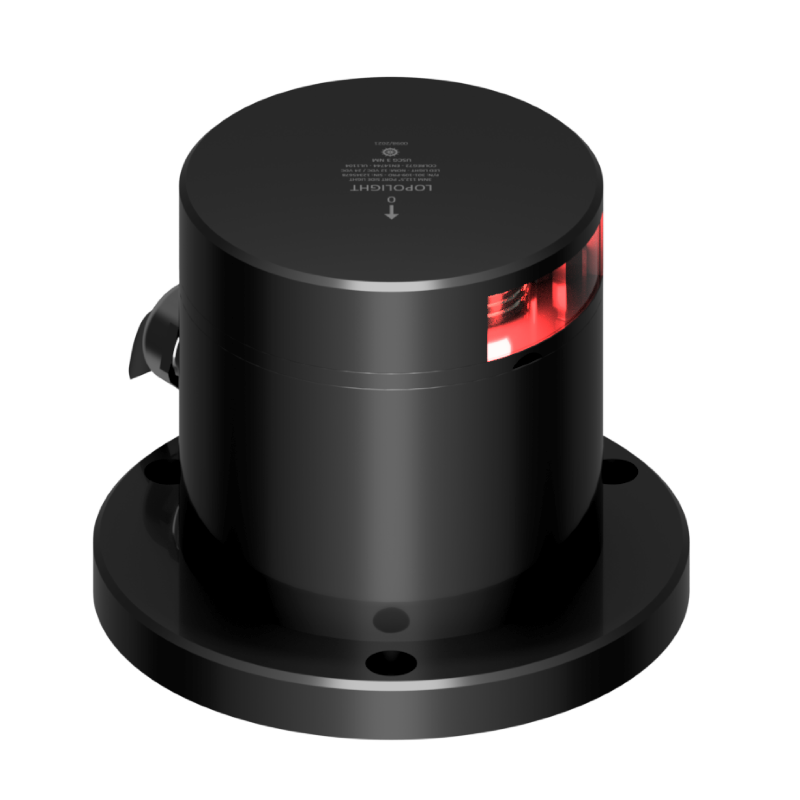

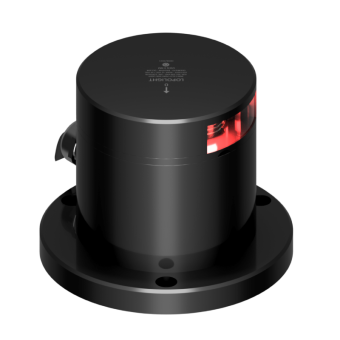

Lopolight 301-109-PRO-I - Navigation Light 3NM 112,5° Red, Port, Black Anodized, Ice-Class
This navigation light is engineered for vessels over 50 meters, offering reliable 3NM visibility and built-in de-icing for extreme conditions. It is designed for horizontal mounting and features high-quality materials to withstand harsh marine environments.
- Built-in de-icing function
- Mounted horizontally on 400-037 POM base (IP68)
- Cable exits to the side
- Includes HDPE base plate
- Quality cable glands for 7-13mm (9/32"-1/2") cable diameter
- Number: 301-109-PRO-I
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >15cd
- Visibility: 3nm
- Included in package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating temperature: -60°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- Power draw: 2.2 W
- Connection: Plug connector
- Current consumption: 153 mA @ 12VDC, 92 mA @ 24VDC
- Minimum feed wire gauge: 1.5mm² AWG18
- Weight: 0.8 Kg (28.22 Oz)
- EAN: 5704438014190
- UPC Code: 879343014193
-
Ask a Question
