SKU:
BP 186909A
$ 1.676,15
1-2 weeks delivery time
-
+
The Lopolight 301-109 is a red port navigation light designed for horizontal mounting on an aluminum base with a PE base plate. Suitable for vessels over 50 meters, it offers flexible cable direction, over 15 cd intensity, and 3 nautical miles visibility, with DNV certification and compliance with multiple maritime standards. Constructed from silver anodized aluminum and PMMA, it operates on 10-32 VDC with a power draw of 2.2 W, weighs 1.01 kg, and comes with mounting screws and an installation guide.
- Description
- Ask a Question
-

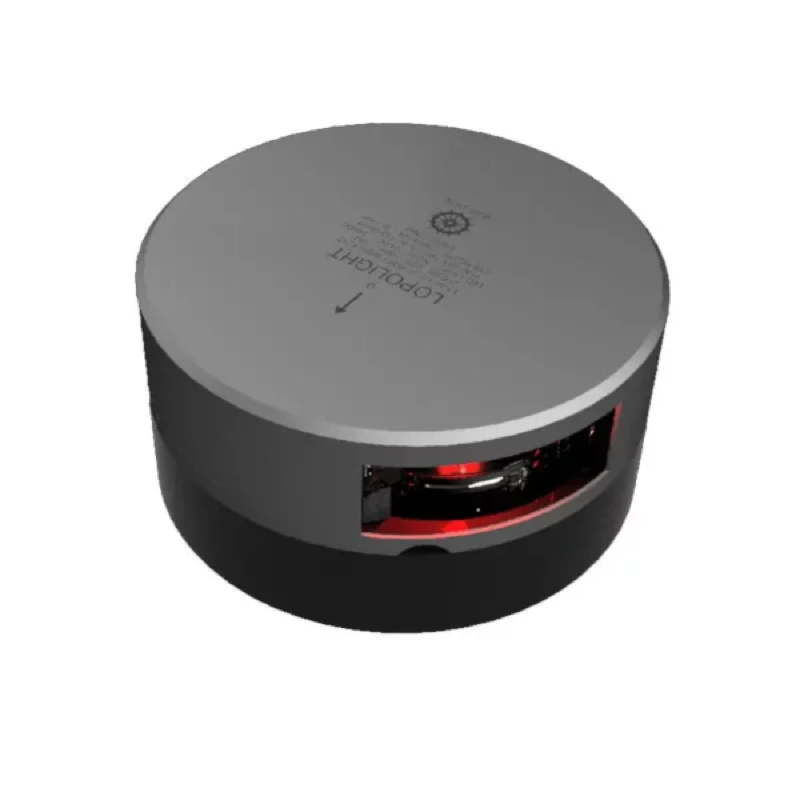

Lopolight 301-109 - Navigation Light 3NM 112.5° Red, Port, Silver Anodized
This red port navigation light is designed for horizontal mounting on an aluminum base with a PE base plate. It offers flexible cable direction options and is built for vessels over 50 meters, ensuring reliable visibility and compliance with maritime standards.
- Item Number: 301-109
- Light Color: Red
- Dimensions (metric): Ø92.5 mm x 74.5 mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: Certified by DNV
- Intensity: >15 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 3 nautical miles
- Included in Package: Navigation light, 2 mounting screws (M6 * 8 mm), installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 2.2 W
- Current Consumption: 153 mA @ 12 VDC, 92 mA @ 24 VDC
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 1.01 kg (35.62 oz)
- IP Rating: IP68
- EAN: 5704438009271
- UPC Code: 879343009274
- Packaging Unit: Piece
- Supplier Article Code: 301-109
- Item Number (Alternate): 186909A
-
