The Lopolight 301-109-B is a compact red port navigation light for vessels over 50 meters, providing a 112.5° light sector and 3 nautical miles visibility. Horizontally mounted on a CSCD base with black anodized aluminum construction, it operates on 10-32 VDC with a power draw of 2.2 W, weighs 1.02 kg, and comes with mounting screws and an installation guide.
- Description
- Ask a Question
-

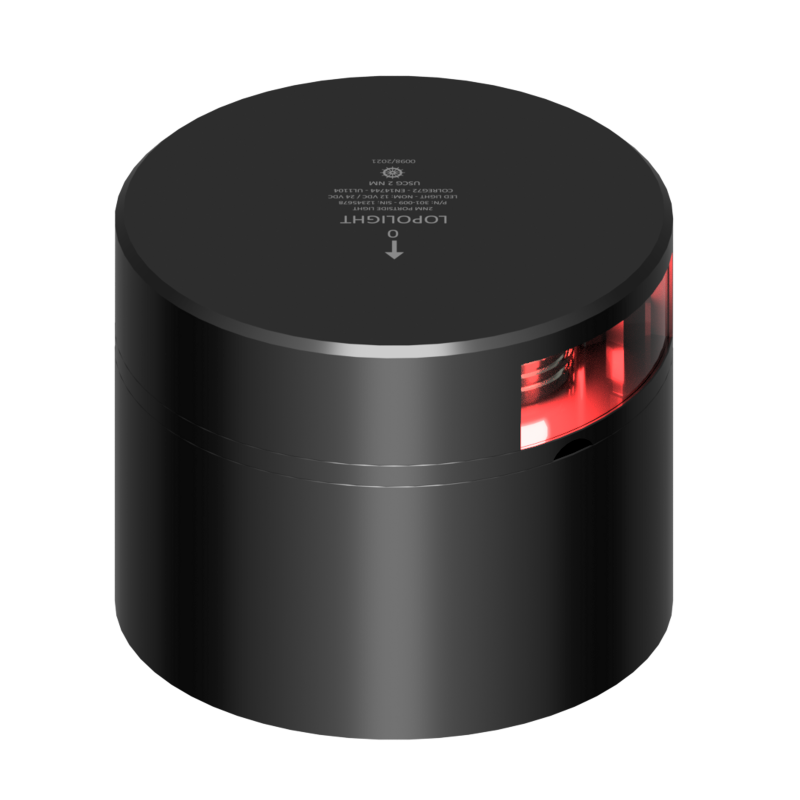

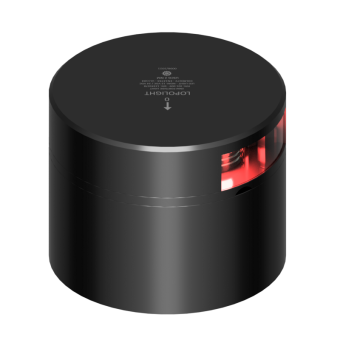

Lopolight 301-109-B - Navigation Light 3NM 112.5° Red, Port, Black Anodized
This compact navigation light suits vessels over 50 meters requiring a port light with 3 nautical miles visibility and a 112.5° red light sector. It features durable black anodized aluminum construction and simple horizontal mounting.
- Mounting: Horizontally mounted on CSCD base including base plate
- Item Number: 301-109-B
- Light Color: Red
- Dimensions (metric): Ø92.5mm x 74.5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certified by: DNV
- Light Intensity: >15cd
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3 nautical miles
- Package includes: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2.2W
- Current Consumption: 153mA @ 12VDC, 92mA @ 24VDC
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.02 Kg (35.98 Oz)
- IP Rating: IP68
- EAN: 5704438014237
- UPC Code: 879343014230
- Item number: 186909AZ
- Packaging unit: Piece
- Supplier Article Code: 301-109-B
-
