SKU:
BP 301-108ST-WH
$ 2.933,33
1-2 weeks delivery time
-
+
The Lopolight 301-108ST-WH is a green double starboard navigation light for vessels over 50 meters, offering 3NM visibility, robust ceramic-coated aluminum construction, IP68 rating, and horizontal mounting with included installation accessories.
- Description
- Ask a Question
-

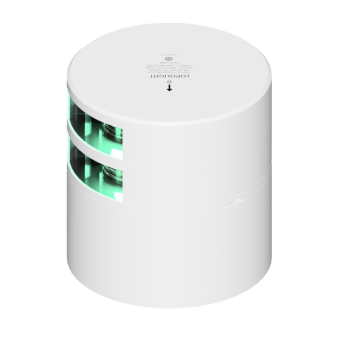

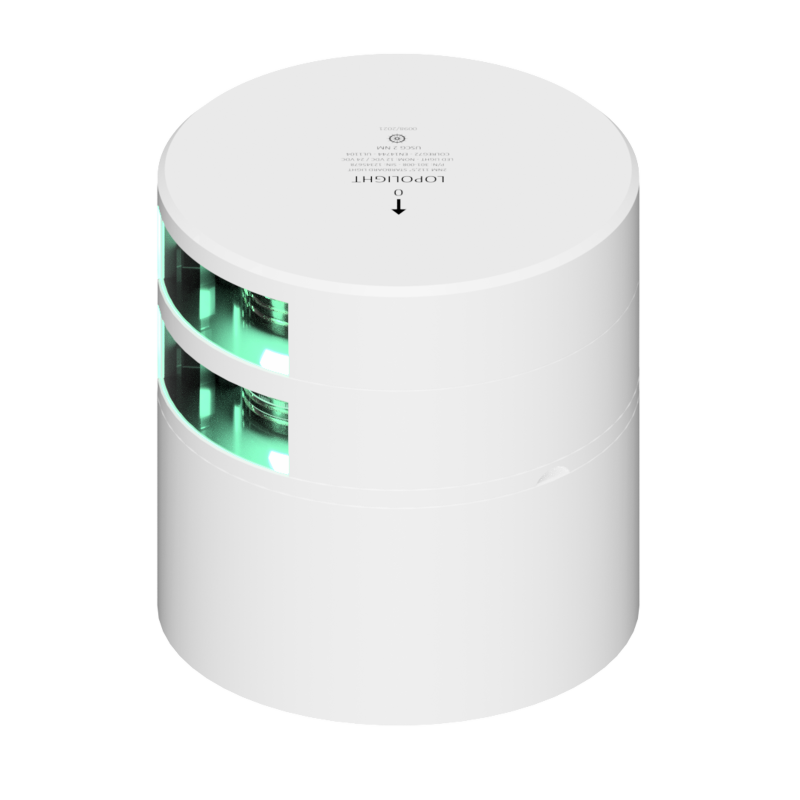

Lopolight 301-108ST-WH - Navigation Light 3NM 112,5° Green, Double Starboard, White Coated
This navigation light is designed for larger vessels over 50 meters, providing reliable 3 nautical mile visibility and robust materials for demanding marine environments.
- Aluminium mount base, white
- Cable down only
- Included standard: Black PE baseplate
- Optional: white ceramic coated baseplate
- Number: 301-108ST-WH
- Light Color: Green
- Dimensions metric: Ø92,5mm x 96,5mm
- Dimensions imperial: Ø3.6" x 3.8"
- Certification: Wheelmarked (DNV)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Included in Package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438039490
- IP rating: IP68
- Power draw (W): 3
- UPC Code: 879343039622
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 183
- Current consumption (mA @ 24VDC): 110
- Vessel size: Over 50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.34 Kg / 47.26 Oz
-
