SKU:
BP 186908ASTP
$ 1.832,07
1-2 weeks delivery time
-
+

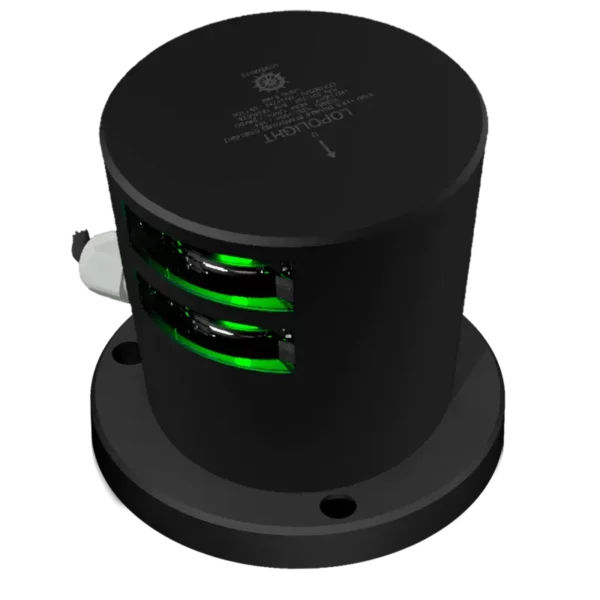

The Lopolight 301-108ST-PRO is a PRO version of the double starboard green navigation light, mounted horizontally on a POM base with an HDPE plate. It features a black hard coat anodized aluminum body, provides 3 nautical miles of visibility, and is suitable for vessels over 50 meters. DNV certified, it draws 2.6 W and is IP68 rated.
- Description
- Ask a Question
-
Lopolight 301-108ST-PRO - Navigation Light 3NM 112.5° Green, Double Starboard, Black Anodized
This PRO version of the double starboard navigation light is horizontally mounted on a 400-037 POM base with an HDPE base plate. Featuring a black hard coat anodized aluminum body, it includes quality cable glands suitable for cable diameters from 7 to 13 mm, built for vessels over 50 meters.
- Item Number: 301-108ST-PRO
- Light Color: Green
- Dimensions (metric): Ø92.5 mm x 125.5 mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV
- Intensity: >15 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 3 nautical miles
- Included in Package: Navigation light, 2 mounting screws (M6 * 8 mm), installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 2.6 W
- Current Consumption: 183 mA @ 12 VDC, 110 mA @ 24 VDC
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 1.62 kg (57.14 oz)
- IP Rating: IP68
- EAN: 5704438014275
- UPC Code: 879343014278
- Packaging Unit: Piece
- Supplier Article Code: 301-108ST-PRO
- Item Number (Alternate): 186908ASTP
-
