SKU:
BP 301-108ST-PRO-I-EX
$ 4.101,39
1-2 weeks delivery time
-
+
The Lopolight 301-108ST-PRO-I-EX combines a green double starboard light with Ex 1&2 explosion-proof certification, ice-class defroster, IP68 horizontal mounting, and DNV certification, designed for hazardous and extreme maritime environments.
- Description
- Ask a Question
-

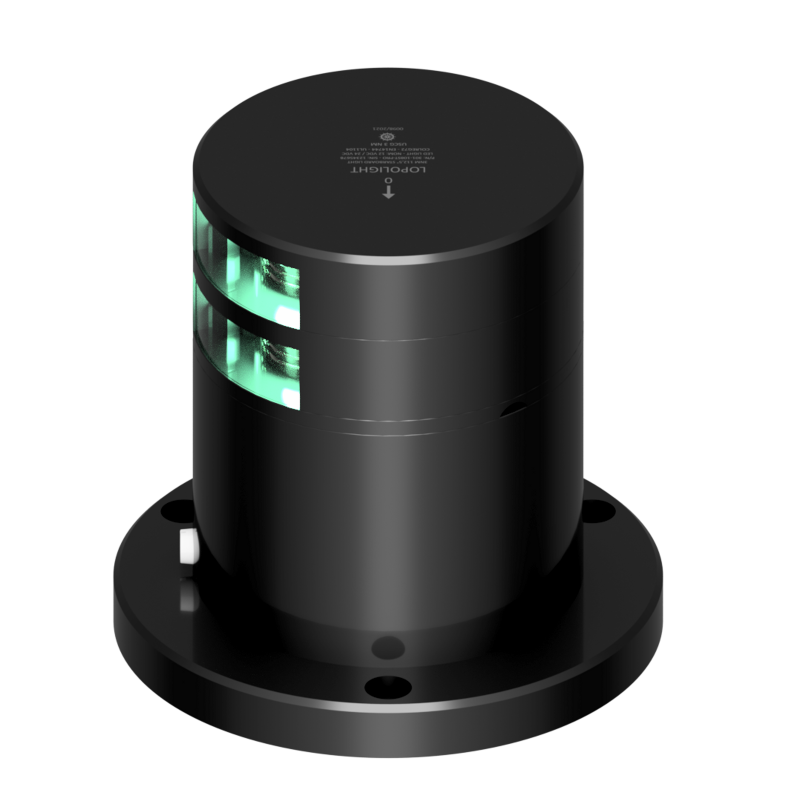

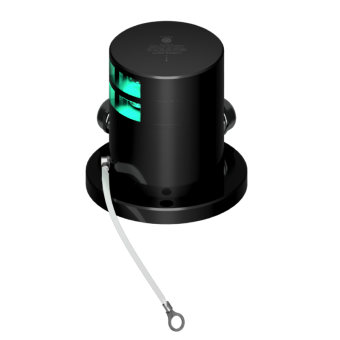

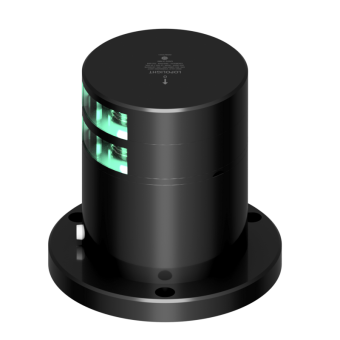

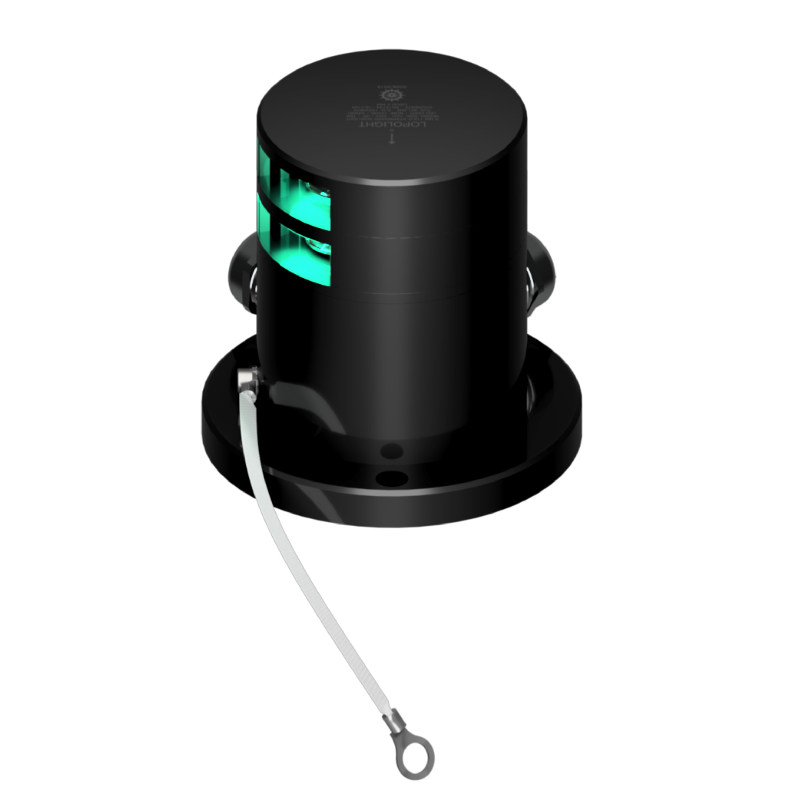

Lopolight 301-108ST-PRO-I-EX - Navigation Light 3NM 112,5° Green, Double Starboard, Ex 1&2, Ice-Class
This Ex-certified navigation light is suitable for hazardous areas (ATEX Zone 1 & 2) and includes a built-in ice-class defroster for extreme conditions.
- Certified for ATEX Zone 1 & 2, IEC Ex Zone 1
- Built-in de-icing function for ice-class operation
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable exit on the side; includes HDPE base plate
- No cable glands or ground strap included
- Product Number: 301-108ST-PRO-I-EX
- Light Color: Green
- Dimensions: Ø92,5mm x 125,5mm (3.6" x 4.9")
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Package includes: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438040687
- IP rating: IP68
- Power draw: 2 W
- UPC Code: 879343040819
- Connection: Plug connector
- Current consumption: 175 mA @ 12VDC, 105 mA @ 24VDC
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Minimum feed wire gauge: 0.5mm² AWG22
- Vessel size: Over 50M
- Weight: 1.62 Kg (57.14 Oz)
-
