SKU:
BP 301-108ST-PRO-EX
$ 2.929,57
1-2 weeks delivery time
-
+
The Lopolight 301-108ST-PRO-EX is a 3NM green double starboard navigation light designed for hazardous environments, featuring black hard coat anodized aluminum construction, IP68 rating, ATEX and IEC Ex Zone 1 & 2 certifications, and suitability for vessels over 50 meters.
- Description
- Ask a Question
-

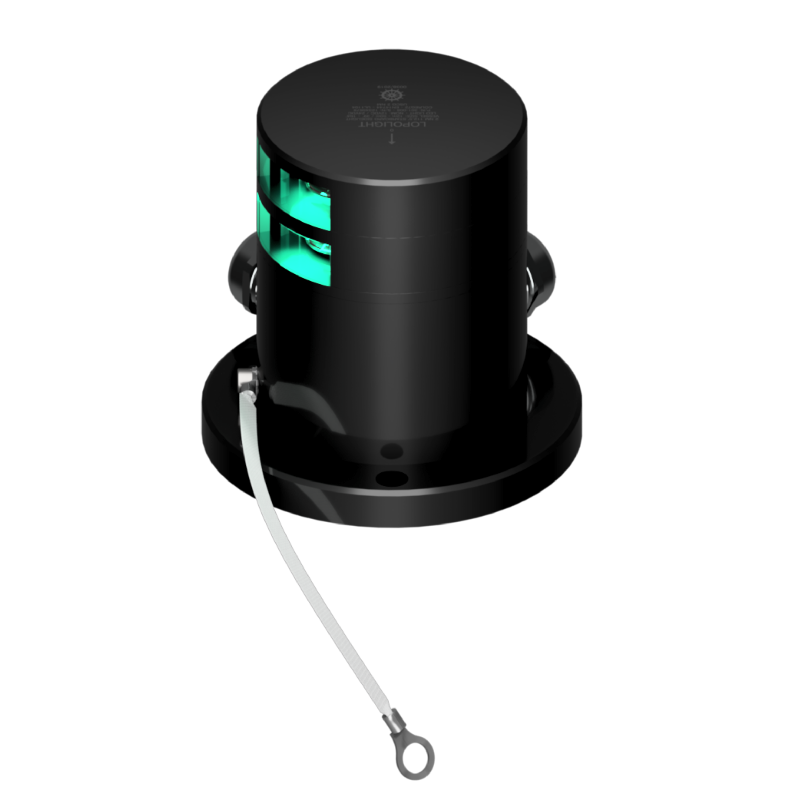

Lopolight 301-108ST-PRO-EX - Navigation Light 3NM 112,5° Green, Double Starboard, Black Ex Zone 1&2
Engineered for hazardous environments, this navigation light is certified for ATEX Zone 1 & 2. Its durable design includes a black hard coat anodized aluminum body and PMMA lens, making it suitable for vessels over 50 meters.
- Number: 301-108ST-PRO-EX
- Light Color: Green
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3NM
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037-B aluminum base (IP68)
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2W
- Connection: Plug connector
- Current Consumption: 175 mA @ 12VDC, 105 mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.62 Kg / 57.14 Oz
- Mounting Accessories: Cable direction side, includes HDPE Base Plate (no cable glands or ground strap included)
-
