The Lopolight 301-108 is a green starboard horizontal navigation light for vessels over 50 meters, offering 3 nautical miles visibility. It mounts on an aluminum base with a PE plate, includes flexible cable direction, and has a silver anodized aluminum body. DNV certified, it draws 2.6 W and is IP68 rated.
- Description
- Ask a Question
-

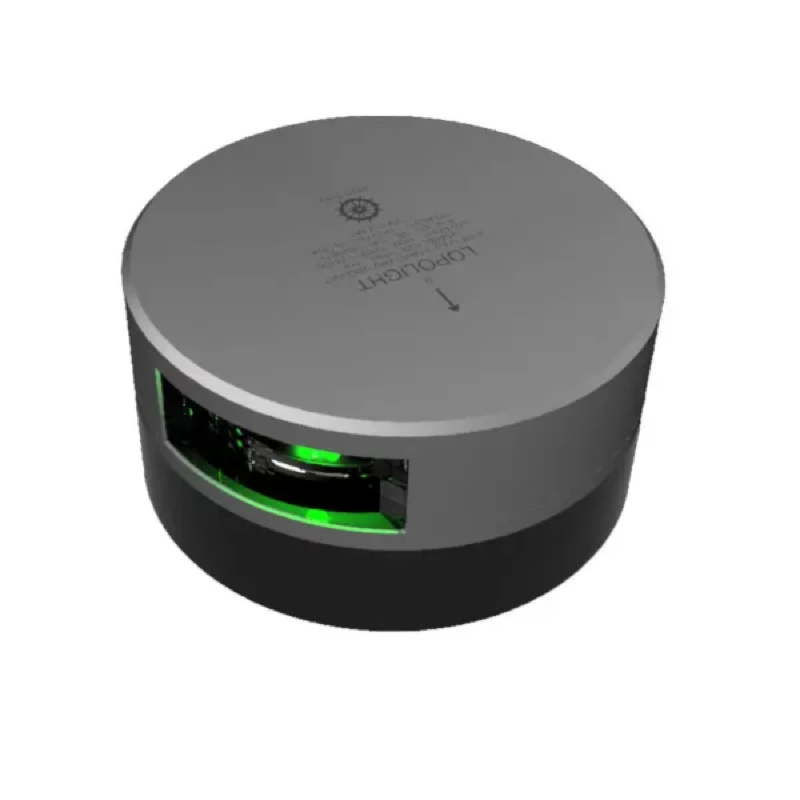

Lopolight 301-108 - Navigation Light 3NM 112.5° Green, Starboard, Silver Anodized
This green starboard navigation light is horizontally mounted on an aluminum base with a PE base plate, suitable for vessels over 50 meters. It offers a flexible cable direction and robust construction for reliable maritime navigation.
- Item Number: 301-108
- Light Color: Green
- Dimensions (metric): Ø92.5 mm x 74.5 mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: Certified by DNV
- Intensity: >15 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 3 nautical miles
- Included in Package: Navigation light, 2 mounting screws (M6 * 8 mm), installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 2.6 W
- Current Consumption: 183 mA @ 12 VDC, 110 mA @ 24 VDC
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 1.01 kg (35.62 oz)
- IP Rating: IP68
- EAN: 5704438014374
- UPC Code: 879343014377
- Packaging Unit: Piece
- Supplier Article Code: 301-108
- Item Number (Alternate): 186908A
-
