SKU:
BP 186906AST
$ 3.047,61
1-2 weeks delivery time
-
+
The Lopolight 301-106ST is a vertical double stern white navigation light for vessels over 50 meters, offering enhanced visibility with a robust silver anodized aluminum body. It mounts vertically, provides 3 nautical miles of visibility, and is DNV certified. The light draws 1.7 W and is IP68 rated.
- Description
- Ask a Question
-

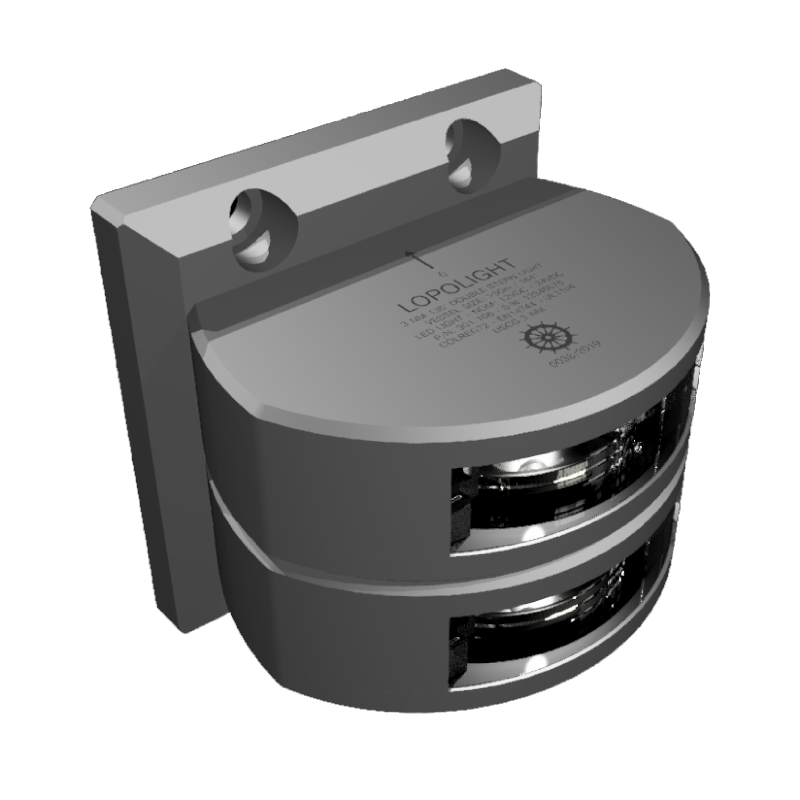

Lopolight 301-106ST - Navigation Light 3NM 135° White, Double Stern, Silver Anodized
This vertical mounted navigation light offers enhanced visibility with a double stern design. Built for vessels larger than 50 meters, it combines robust materials and certified performance for reliable maritime navigation.
- Item Number: 301-106ST
- Light Color: White
- Dimensions (metric): Ø92.5 mm x 96.5 mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: Certified by DNV
- Intensity: >15 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 3 nautical miles
- Operating Temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 1.7 W
- Current Consumption: 130 mA @ 12 VDC, 72 mA @ 24 VDC
- Connection: 2.5 meter cable
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 0.98 kg (34.56 oz)
- IP Rating: IP68
- EAN: 5704438010659
- UPC Code: 879343010652
- Packaging Unit: Piece
- Supplier Article Code: 301-106ST
- Item Number (Alternate): 186906AST
-
