SKU:
BP 186906A
$ 1.676,15
1-2 weeks delivery time
-
+
The Lopolight 301-106 is a vertical white navigation light for vessels over 50 meters, providing 135° coverage and 3 nautical miles visibility. It features a silver anodized aluminum body with a PMMA lens, mounts vertically, and includes a 2.5-meter marine-grade cable. DNV certified and approved internationally, it consumes 1.7 W and is IP68 rated.
- Description
- Ask a Question
-

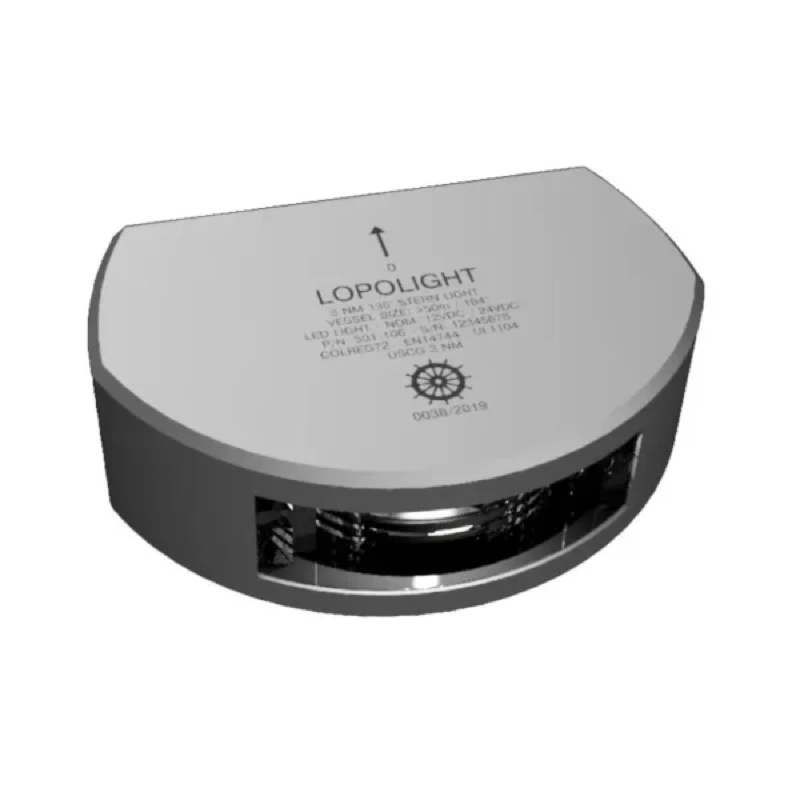

Lopolight 301-106 - Navigation Light 3NM 135° White, Stern, Silver Anodized
This navigation light is designed for vertical mounting and is suitable for vessels over 50 meters. It features a silver anodized aluminum body with a PMMA lens, ensuring durability and reliability in marine environments.
- Item Number: 301-106
- Light Color: White
- Dimensions (metric): 86.2 x 28 x 57.75 mm
- Dimensions (imperial): 3.3" x 1.1" x 2.27"
- Certification: Certified by DNV
- Intensity: >15 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 3 nautical miles
- Included in Package: Navigation light with 2.5m shielded marine grade cable, 2 mounting screws (M6 * 8 mm), installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 1.7 W
- Current Consumption: 130 mA @ 12 VDC, 72 mA @ 24 VDC
- Connection: 2.5 meter cable
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 0.41 kg (14.46 oz)
- IP Rating: IP68
- EAN: 5704438010635
- UPC Code: 879343010638
- Packaging Unit: Piece
- Supplier Article Code: 301-106
- Item Number (Alternate): 186906A
-
