SKU:
BP 186905AST
$ 3.047,61
1-2 weeks delivery time
-
+
The Lopolight 301-105ST is a double stern white navigation light for vessels over 50 meters, providing 135° coverage and 3 nautical miles visibility. It mounts horizontally on a CSCD base, features a silver anodized aluminum body, and is DNV certified. Operating at 1.7 W, it functions from -25°C to 55°C and is IP68 rated.
- Description
- Ask a Question
-

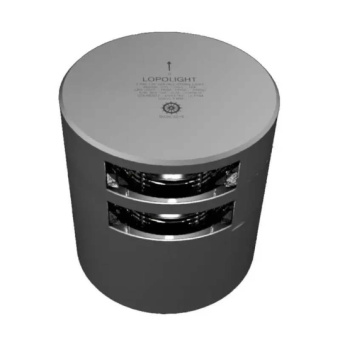

Lopolight 301-105ST - Navigation Light 3NM 135° White, Double Stern, Silver Anodized
This double stern navigation light is designed for horizontal mounting on the (400-034) CSCD base. It features a silver anodized aluminum body and provides bright white light visible up to 3 nautical miles, ideal for vessels over 50 meters.
- Mounting: Horizontal on (400-034) CSCD base
- Model Number: 301-105ST
- Light Color: White
- Dimensions (metric): Ø92.5 mm x 96.5 mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: DNV certified
- Intensity: >15cd
- Visibility: 3 nautical miles
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package:
- 1 navigation light
- 2 mounting screws (M6 * 8 mm)
- Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 1.7 W
- Current Consumption: 130 mA @ 12 VDC, 72 mA @ 24 VDC
- Minimum Feed Wire Gauge: 0.5 mm² AWG22
- IP Rating: IP68
- Weight: 1.32 kg (46.56 oz)
- Connection: Plug connector
- EAN Code: 5704438013292
- UPC Code: 879343013295
- Item Number: 186905AST
- Packaging Unit: Piece
- Supplier Article Code: 301-105ST
-
