SKU:
BP 186902AST
$ 2.666,65
1-2 weeks delivery time
-
+
The Lopolight 301-102ST is a vertical double port red navigation light for vessels over 50 meters, offering 3 nautical miles of visibility. It features a silver anodized aluminum body, a 2.5-meter precabled cable, and mounts vertically. Certified by DNV, approved to international standards, it consumes 2 W and is IP68 rated.
- Description
- Ask a Question
-

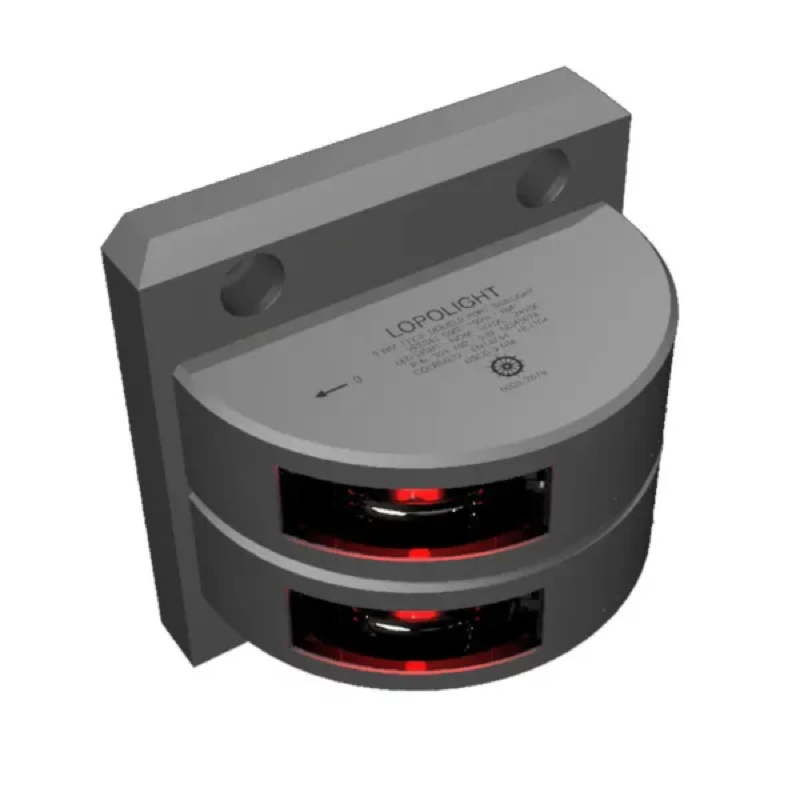

Lopolight 301-102ST - Navigation Light 3NM 112.5° Red, Double Port, Silver Anodized
This double port side navigation light offers clear red illumination with a 3 nautical mile range. It is vertically mounted and constructed from silver anodized aluminum, built to withstand harsh marine environments on vessels over 50 meters.
- Mounting: Vertical with 2.5m shielded marine grade cable
- Model Number: 301-102ST
- Light Color: Red
- Dimensions (metric): 100 x 100 x 49.7 mm
- Dimensions (imperial): 3.9" x 3.9" x 1.95"
- Certification: DNV certified
- Intensity: >15cd
- Visibility: 3 nautical miles
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package:
- 1 navigation light
- 2.5 meter precabled shielded marine grade cable
- 2 mounting screws (M6 * 8 mm)
- Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 2 W
- Current Consumption: 150 mA @ 12 VDC, 100 mA @ 24 VDC
- Minimum Feed Wire Gauge: 0.5 mm² AWG22
- IP Rating: IP68
- Weight: 1.01 kg (35.62 oz)
- Connection: 2.5m cable
- EAN Code: 5704438010581
- UPC Code: 879343010584
- Item Number: 186902AST
- Packaging Unit: Piece
- Supplier Article Code: 301-102ST
-
Ask a Question
