SKU:
BP 186901AST
$ 2.666,65
1-2 weeks delivery time
-
+
The Lopolight 301-101ST is a robust green navigation light designed for vessels over 50 meters, providing a 3 nautical mile visibility range with a 112.5° beam. It mounts vertically, comes precabled with a 2.5-meter marine-grade cable, and features a silver anodized aluminum body. Certified by DNV and approved to multiple international standards, it operates between -25°C to 55°C, draws 2.3 W, and is IP68 rated for marine environments.
- Description
- Ask a Question
-

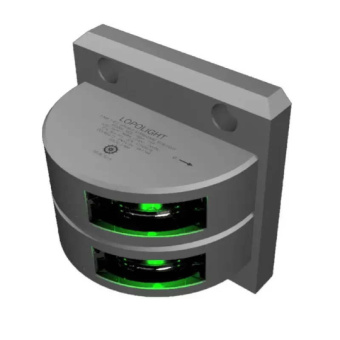

Lopolight 301-101ST - Navigation Light 3NM 112.5° Green, Double Starboard, Silver Anodized
This robust navigation light is designed for vessels over 50 meters, providing clear green illumination with a visibility range of 3 nautical miles and a wide 112.5° angle. The unit is built for vertical mounting and comes precabled for straightforward installation.
- Mounting: Vertical with 2.5m shielded marine grade cable
- Model Number: 301-101ST
- Light Color: Green
- Dimensions (metric): 100 x 100 x 49.7 mm
- Dimensions (imperial): 3.9" x 3.9" x 1.95"
- Certification: DNV certified
- Intensity: >15cd
- Visibility: 3 nautical miles
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package:
- 1 navigation light
- 2.5 meter precabled shielded marine grade cable
- 2 mounting screws (M6 * 8 mm)
- Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 2.3 W
- Current Consumption: 180 mA @ 12 VDC, 100 mA @ 24 VDC
- Minimum Feed Wire Gauge: 0.5 mm² AWG22
- IP Rating: IP68
- Weight: 1.02 kg (35.98 oz)
- Connection: 2.5 m cable
- EAN Code: 5704438013186
- UPC Code: 879343013189
- Article Number: 186901AST
- Packaging Unit: Piece
- Supplier Article Code: 301-101ST
-
Ask a Question
