SKU:
BP 186901AZ
$ 1.396,80
1-2 weeks delivery time
-
+
The Lopolight 301-101-B is a compact green starboard navigation light suitable for vessels over 50 meters, offering 3 nautical miles of visibility with a 112.5° beam. It mounts vertically, includes a 2.5-meter precabled cable, and has a black anodized aluminum housing. Certified by DNV and approved to various international standards, it operates from -25°C to 55°C, consumes 2.3 W, and is IP68 rated.
- Description
- Ask a Question
-

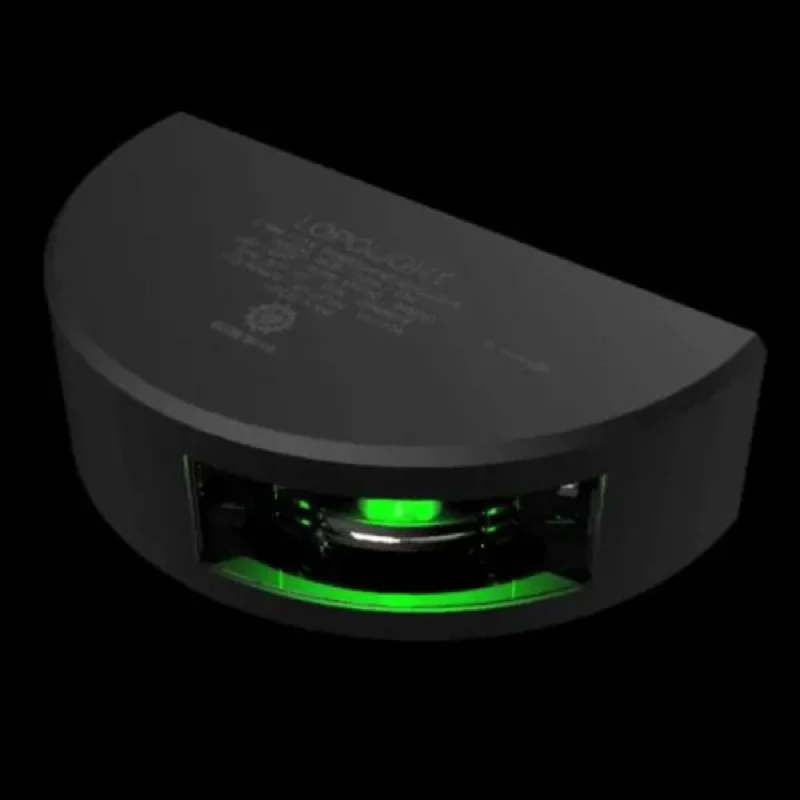

Lopolight 301-101-B - Navigation Light 3NM 112.5° Green, Starboard, Black Anodized
This compact navigation light delivers green illumination with a 3 nautical mile range and a 112.5° beam, suitable for vessels over 50 meters. It is designed for vertical mounting and includes a precabled connection for easy setup.
- Mounting: Vertical with 2.5m shielded marine grade cable
- Model Number: 301-101-B
- Light Color: Green
- Dimensions (metric): 92.5 x 28 x 49.7 mm
- Dimensions (imperial): 3.6" x 1.1" x 1.95"
- Certification: DNV certified
- Intensity: >15cd
- Visibility: 3 nautical miles
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package:
- 1 navigation light
- 2.5 meter precabled shielded marine grade cable
- 2 mounting screws (M6 * 8 mm)
- Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 2.3 W
- Current Consumption: 180 mA @ 12 VDC, 100 mA @ 24 VDC
- Minimum Feed Wire Gauge: 0.5 mm² AWG22
- IP Rating: IP68
- Weight: 0.38 kg (13.40 oz)
- Connection: 2.5 m cable
- EAN Code: 5704438013162
- UPC Code: 879343013165
- Article Number: 186901AZ
- Packaging Unit: Piece
- Supplier Article Code: 301-101-B
-
