SKU:
BP 186811AKLZ
$ 1.763,72
1-2 weeks delivery time
-
+
This black anodized navigation light provides 5 nautical mile visibility with a 225° arc and is designed for horizontal mounting on a CSCD (400-034) base. It is suitable for vessels 20 to 50 meters, DNV certified, consumes 4.1 W, operates from -25°C to 55°C, and has an IP68 rating. The package includes the light, mounting screws, and installation guide.
- Description
- Ask a Question
-

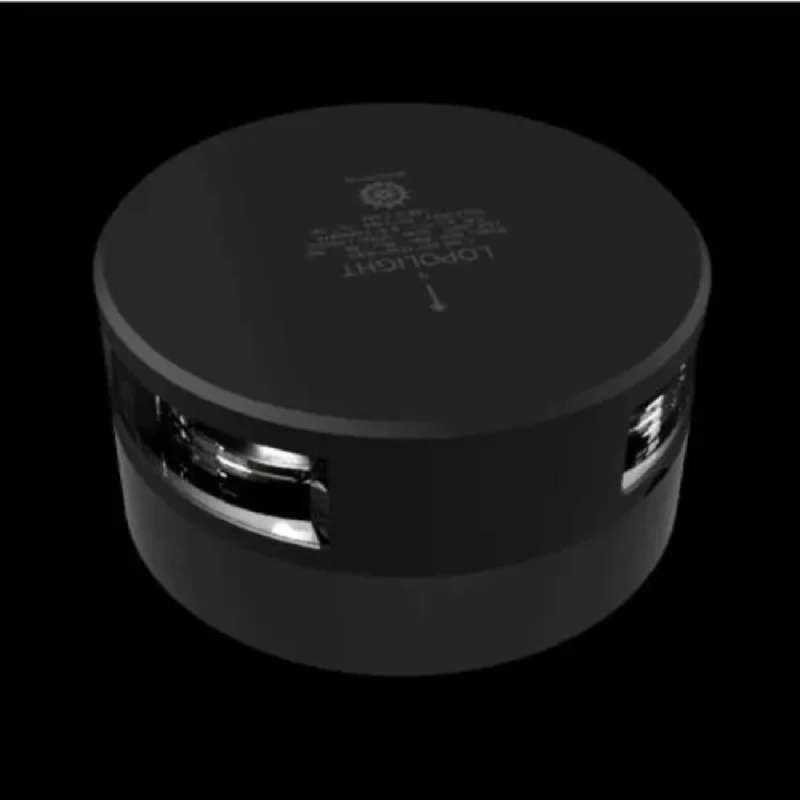

Lopolight 301-011KL-B - Navigation Light 5NM 225° White, Masthead, Black Anodized
This navigation light is designed for horizontal mounting on a CSCD (400-034) base and provides 5 nautical mile visibility within a 225° arc. It features a durable black anodized aluminum body and is certified by DNV for dependable marine use on vessels sized 20 to 50 meters.
- Article number: 186811AKLZ
- Light color: White
- Dimensions: Ø92.5mm x 74.5mm (Ø3.6" x 2.9")
- Certification: Certified by DNV
- Intensity: >52 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 5 nautical miles
- Included in package: 1 navigation light, 2 mounting screws (M6 x 8 mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- IP rating: IP68
- Power draw: 4.1 W
- Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
- Vessel size suitability: 20-50 meters
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 0.99 kg (34.92 oz)
- Connection: Plug connector
- EAN: 5704438013070
- UPC Code: 879343013073
-
