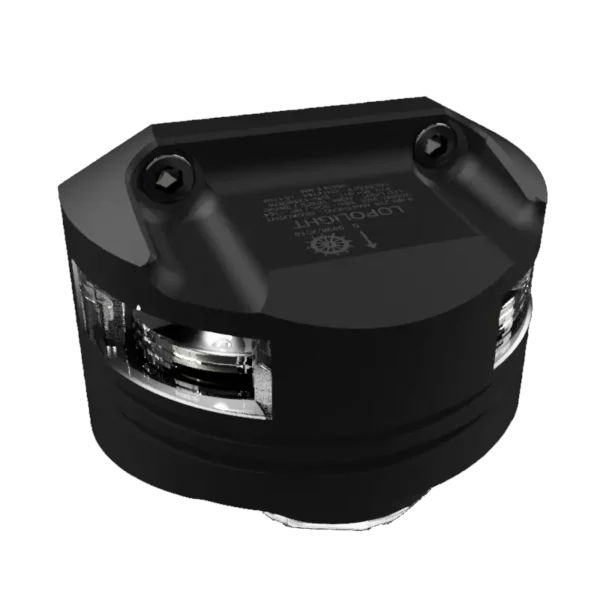

Lopolight 301-011DLX-B 15M - Navigation Light 5NM 225° White, Masthead+6W Decklight, Black

SKU: BP 186811ADLXZC15

$ 2.435,05

1-2 weeks delivery time

- +

Add to cart

The black anodized vertical masthead navigation light delivers 5 nautical mile visibility with a 225° arc and a 6W decklight angled 8° forward, producing a 26° beam. Designed for vessels 20 to 50 meters long, it features a 15-meter cable, robust construction, and DNV certification. The light operates from 10-32VDC, consumes 4.1 W, and has an IP68 rating. The package includes one light, two mounting screws, and an installation guide.

Description
Ask a Question

Lopolight 301-011DLX-B 15M - Navigation Light 5NM 225° White, Masthead + 6W Decklight, Black

This black anodized vertical masthead navigation light delivers a 5 nautical mile visibility with a 225° arc and includes a 6W decklight angled 8° forward, producing a 26° beam. Designed for vessels 20 to 50 meters in length, it features a 15-meter cable and robust construction with certified DNV approval.
- Article number: 186811ADLXZC15
- Supplier Article Code: 301-011DLX-B 15M
- EAN code: 5704438013063
- Light Color: White
- Dimensions (metric): 54 mm x 38.7 mm x 72.2 mm
- Dimensions (imperial): 2.1" x 1.5" x 2.8"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >52cd
- Visibility: 5 nautical miles
- Decklight beam angle: 26°, angled 8° forward
- Power draw: 4.1 W
- Operating temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP rating: IP68
- Connection: 15m cable
- Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
- Vessel size: 20-50M
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.25 Kg (44.09 Oz)
- Included in Package: 1 navigation light, 2 mounting screws (M6 x 8 mm), installation guide
