SKU:
BP 186811A
$ 1.763,72
1-2 weeks delivery time
-
+
The Lopolight 301-011 is a masthead navigation light providing white illumination over 5 nautical miles with a 225° visibility arc. It features a vertical mounting system with a 0.75-meter cable, silver anodized aluminum construction, DNV certification, and draws 4.1 W. Designed for vessels 20-50 meters, it includes mounting screws and installation guide.
- Description
- Ask a Question
-

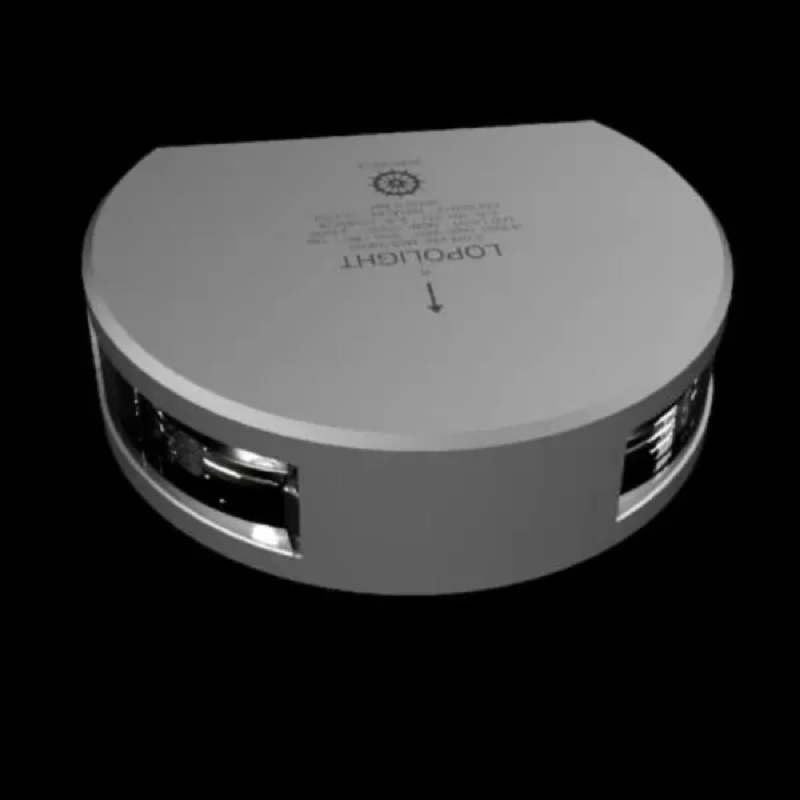

Lopolight 301-011 - Navigation Light 5NM 225° White, Masthead, Silver Anodized
This masthead navigation light provides powerful white illumination with a 225° visibility arc and a range of 5 nautical miles. It features a vertical mounting system with a 0.75 meter shielded marine-grade cable and is made of silver anodized aluminum for durability. Designed for vessels between 20 and 50 meters, it delivers intensity greater than 52cd while maintaining a compact and lightweight form.
- Article number: 186811A
- Supplier article code: 301-011
- Light Color: White
- Dimensions (metric): 74.55mm x 28mm x 73.16mm
- Dimensions (imperial): 2.9" x 1.1" x 2.88"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >52cd
- Visibility: 5 nautical miles
- Included in Package: 1 Navigation light, precabled with 0.75 meter shielded marine cable, 2 mounting screws (M6 x 8mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP rating: IP68
- Power draw: 4.1 W
- Connection: 0.7m cable
- Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
- Vessel size: 20-50M
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 0.42 Kg (14.81 Oz)
- EAN: 5704438009486
- UPC Code: 879343009489
-
