SKU:
BP 186811AZ
$ 1.763,72
1-2 weeks delivery time
-
+
The black anodized vertical masthead navigation light comes precabled with a 0.75-meter shielded marine-grade cable and delivers 5 nautical mile visibility. Suitable for vessels 20 to 50 meters, it is DNV certified, consumes 4.1 W, and operates from -25°C to 55°C. The light is built from durable black anodized aluminum, and the package includes the navigation light, two mounting screws, and an installation guide.
- Description
- Ask a Question
-

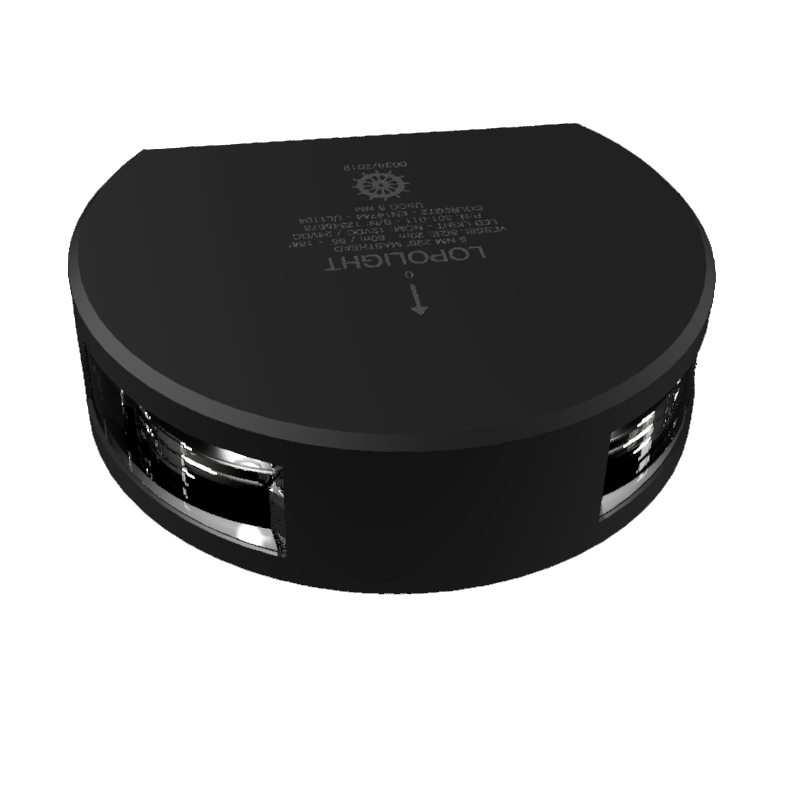

Lopolight 301-011-B - Navigation Light 5NM 225° White, Masthead, Black Anodized
This masthead navigation light is vertically mounted and comes precabled with a 0.75-meter shielded marine-grade cable. It is built with black anodized aluminum and delivers clear white light visible up to 5 nautical miles, suitable for vessels between 20 and 50 meters.
- Article number: 186811AZ
- Light color: White
- Dimensions: 74.55mm x 28mm x 73.16mm (2.9" x 1.1" x 2.88")
- Certification: Certified by DNV
- Intensity: >52 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 5 nautical miles
- Included in package: 1 navigation light precabled with 0.75m cable, 2 mounting screws (M6 x 8 mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- IP rating: IP68
- Power draw: 4.1 W
- Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
- Vessel size suitability: 20-50 meters
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 0.43 kg (15.17 oz)
- Connection: 0.75m cable
- EAN: 5704438009479
- UPC Code: 879343009472
-
