SKU:
BP 186809AST-FB
$ 968,38
1-2 weeks delivery time
-
+
The Lopolight 301-009ST-FB is a double port navigation light with a silver FB base for horizontal mounting. It provides red light visible to 2 nautical miles, is DNV certified, and suitable for vessels up to 50 meters. The light comes precabled with a 2.5-meter cable and includes an installation guide.
- Description
- Ask a Question
-

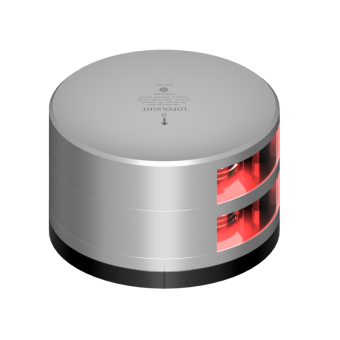

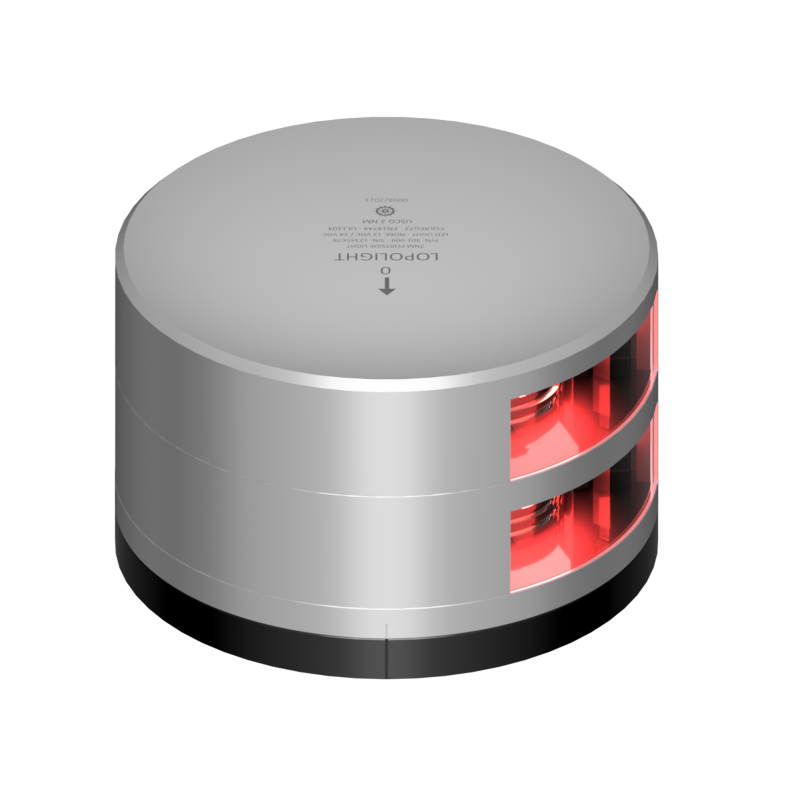

Lopolight 301-009ST-FB - Navigation Light 2NM 112.5° Red, Double Port, Silver w/FB Base
This double port navigation light features a flat base (FB) POM mounting system with a 2.5 meter shielded marine-grade cable. Designed for horizontal mounting, it delivers red light visible up to 2 nautical miles and is suitable for vessels from under 12 meters to 50 meters.
- Article number: 186809AST-FB
- Supplier Article Code: 301-009ST-FB
- Light Color: Red
- Dimensions (metric): Ø92.5mm x 58mm
- Dimensions (imperial): Ø3.6" x 2.3"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2 nautical miles
- Included: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP rating: IP68
- Power draw: 1.2 W
- Connection: 2.5m cable
- Current consumption: 90 mA @ 12VDC, 50 mA @ 24VDC
- Vessel size: Under 12M, 12-20M, 20-50M
- Minimum feed wire gauge: 0.5 mm² AWG22
- Weight: 0.91 Kg (32.24 Oz)
- EAN: 5704438043770
- UPC Code: 879343043902
-
