SKU:
BP 186809ASTZ-FB
$ 1.244,37
1-2 weeks delivery time
-
+
The Lopolight 301-009ST-B-CD is a double port navigation light with black anodized aluminum construction and CD base with plug connector. Designed for horizontal mounting, it provides high-intensity red light over 5.4 cd visible up to 2 nautical miles, is DNV certified, and suitable for vessels 12-50 meters.
- Description
- Ask a Question
-

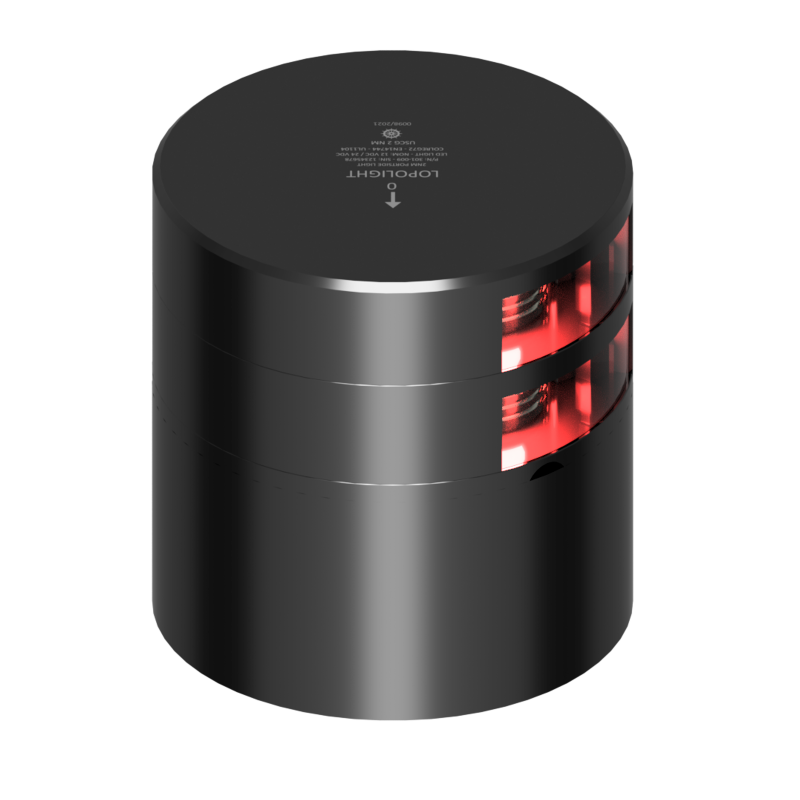

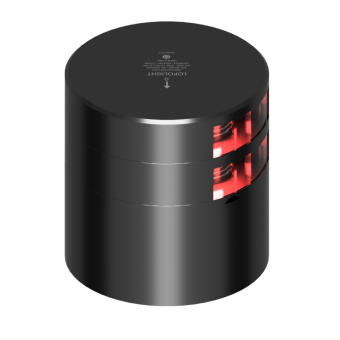

Lopolight 301-009ST-B-CD - Navigation Light 2NM 112.5° Red, Double Port, Black w/Connector & CD-Base
This double port navigation light features a black anodized aluminum construction with a robust IP68-rated aluminum CD base. Designed for horizontal mounting, it includes a plug connector and cable gland (M16) for secure cable management. The light offers high intensity (>5.4cd) red illumination visible up to 2 nautical miles, suitable for vessels sized 12-50 meters.
- Article number: 186809ASTZ-FB
- Supplier Article Code: 301-009ST-B-CD
- Light Color: Red
- Dimensions (metric): Ø92.5mm x 96.5mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >5.4cd
- Visibility: 2 nautical miles
- Included: 1 Navigation light
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP rating: IP68
- Connection: Plug connector
- Current consumption: 90 mA @ 12VDC, 50 mA @ 24VDC
- Vessel size: 12-20M, 20-50M
- EAN: 5704438045019
- UPC Code: 879343045142
-
