SKU:
BP 186809AFB
$ 491,24
1-2 weeks delivery time
-
+
The Lopolight 301-009-FB is a red port navigation light with horizontal mounting and a silver FB base. It includes a 2.5-meter shielded cable, is DNV certified, and provides 2 nautical mile visibility. Suitable for vessels up to 50 meters, it draws 1.2 W and comes with an installation guide.
- Description
- Ask a Question
-

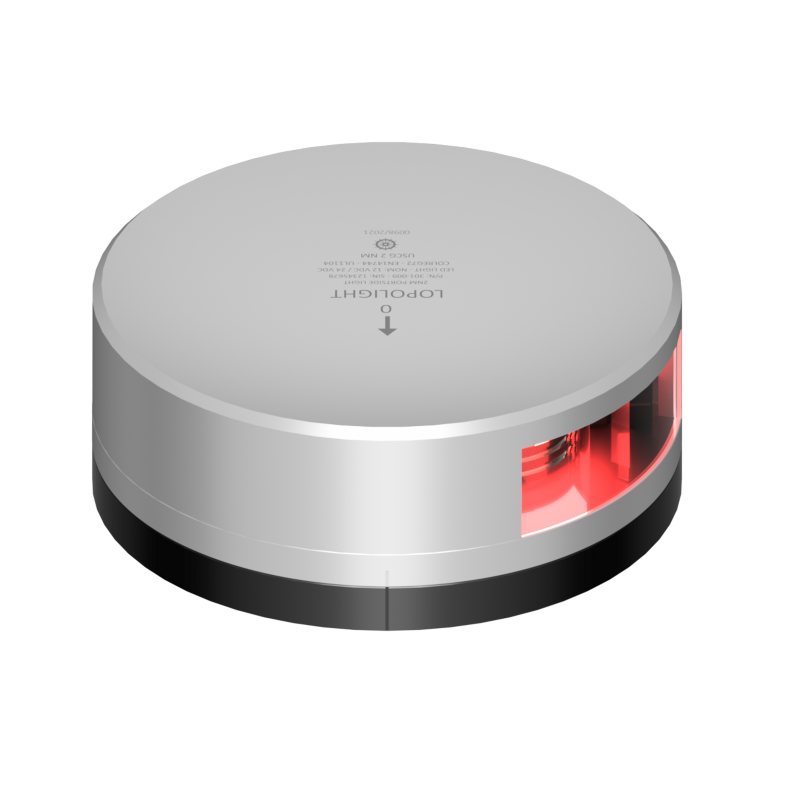

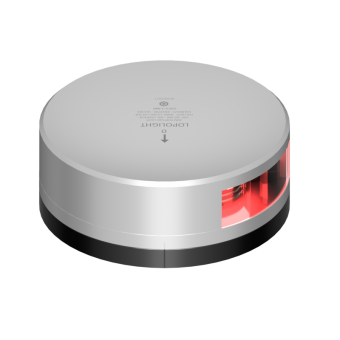

Lopolight 301-009-FB - Navigation Light 2NM 112.5° Red, Port, Silver w/FB Base
This navigation light provides red port illumination with a 2 nautical mile visibility range. It is horizontally mounted with a flat base (FB) POM mounting system and includes a 2.5 meter shielded marine-grade cable, making it suitable for vessels under 12 meters up to 50 meters.
- Article number: 186809AFB
- Supplier Article Code: 301-009-FB
- Light Color: Red
- Dimensions (metric): Ø92.5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2 nautical miles
- Included: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP rating: IP68
- Power draw: 1.2 W
- Connection: 2.5m cable
- Current consumption: 90 mA @ 12VDC, 50 mA @ 24VDC
- Vessel size: Under 12M, 12-20M, 20-50M
- Minimum feed wire gauge: 0.5 mm² AWG22
- Weight: 0.57 Kg (19.93 Oz)
- EAN: 5704438043725
- UPC Code: 879343043858
-
