SKU:
BP 301-005ST-PRO-I-EX
$ 2.692,80
1-2 weeks delivery time
-
+
The Lopolight 301-005ST-PRO-I-EX is an EX-certified white navigation light designed for harsh environments, with de-icing functionality and ATEX Zone 1 & 2 approval. It mounts horizontally on a 400-037 EX/MIL aluminum base, has a visibility of 2NM, and is suitable for vessels under 12M, 12-20M, and 20-50M, with comprehensive international certifications.
- Description
- Ask a Question
-

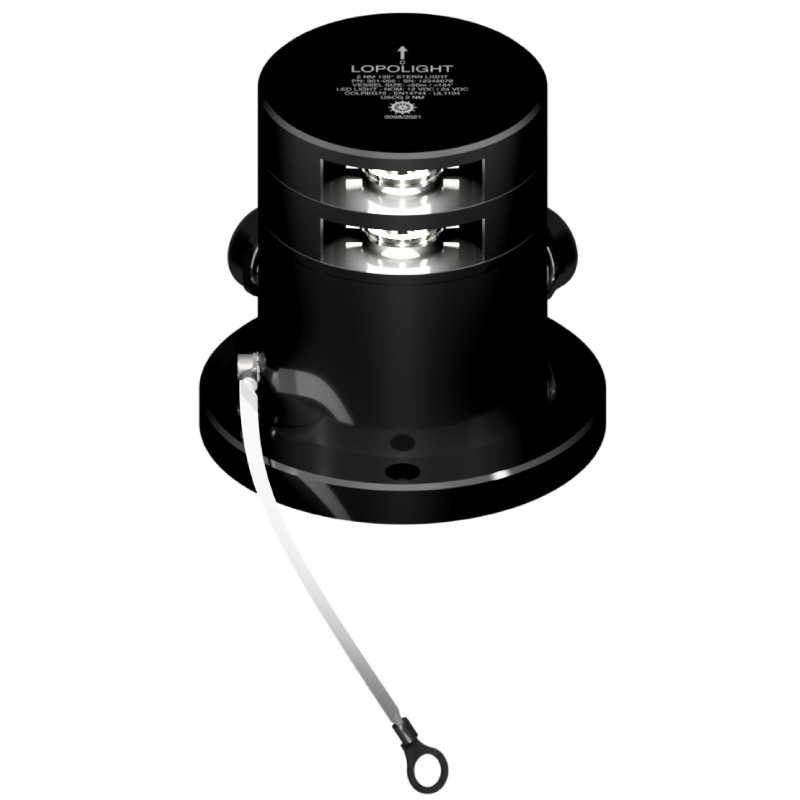

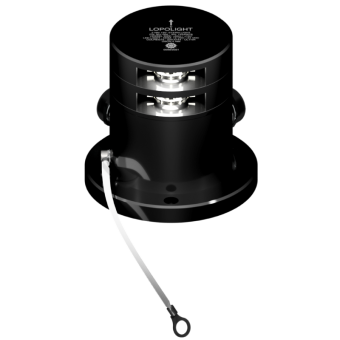

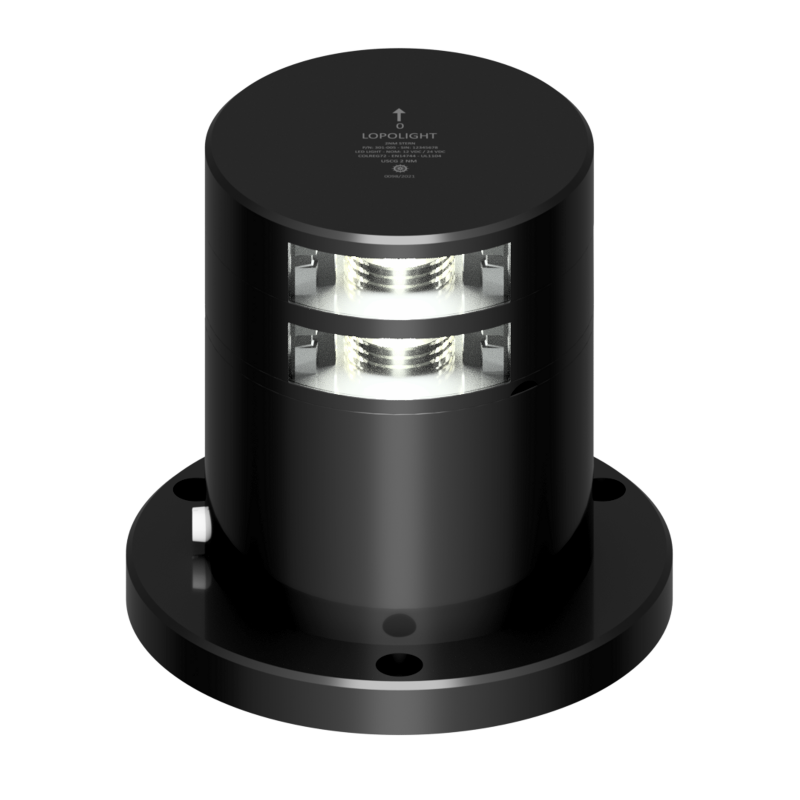

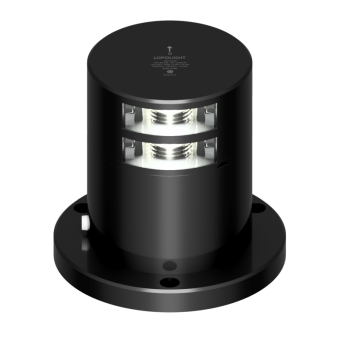

Lopolight 301-005ST-PRO-I-EX - Navigation Light 2NM 135° White, Stern, Double, Black EX 1&2 Ice-Class
A robust EX-certified navigation light built for harsh environments, featuring de-icing functionality and certified for use in ATEX Zone 1 & 2. It ensures safe navigation for vessels across multiple size ranges with high international safety compliance.
- Model Number: 301-005ST-PRO-I-EX
- Light Color: White
- Visibility: 2nm
- Mounting: Horizontal on 400-037 EX/MIL alu base, cable direction side
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Temperature: -25°C to 55°C
- Operating Voltage: 10-32VDC
- Current Consumption: 85 mA @ 12VDC / 50 mA @ 24VDC
- Power Draw: 1 W
- Connection: Plug connector
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.4 Kg / 49.38 Oz
- Included in Package: 1 Navigation light, Installation guide
- Mounting Accessories: Incl. HDPE base plate (no cable glands or ground strap included)
- IP Rating: IP68
- Certifications: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR), Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- EAN: 5704438040595
- UPC Code: 879343040727
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
-
