SKU:
BP 301-005ST-PRO-EX
$ 1.923,42
1-2 weeks delivery time
-
+
The Lopolight 301-005ST-PRO-EX is a white double stern light certified for ATEX Zone 1 & 2, suitable for hazardous environments. It features black anodized aluminum construction, horizontal mounting, 2NM visibility, and is suitable for vessels up to 50 meters with DNV certification.
- Description
- Ask a Question
-

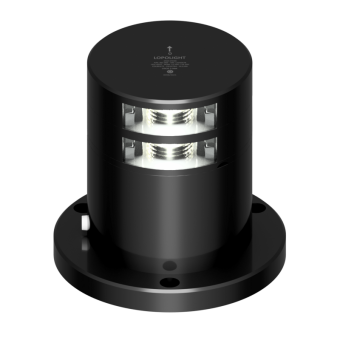

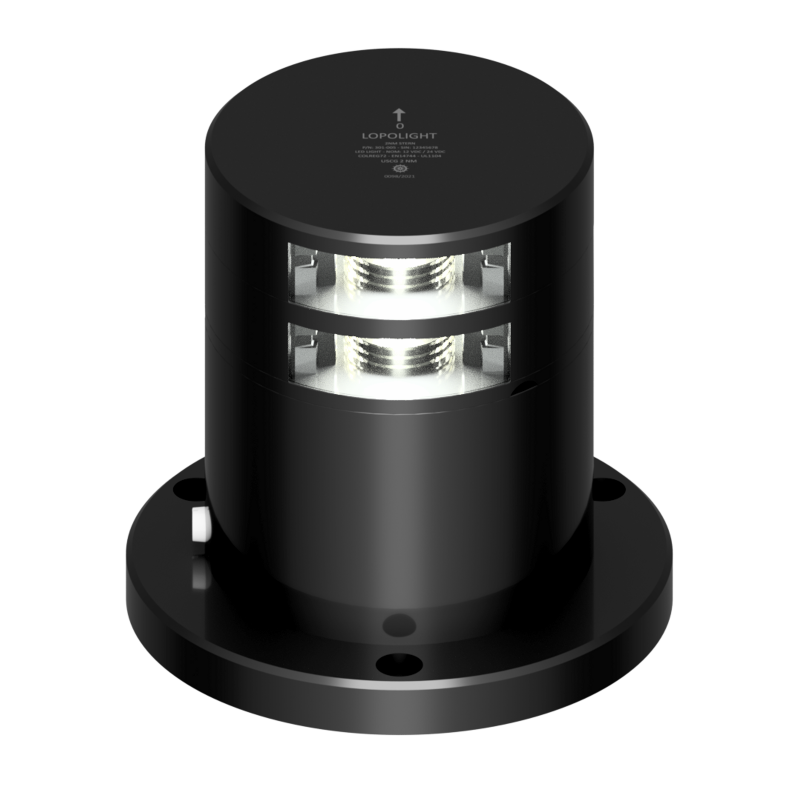

Lopolight 301-005ST-PRO-EX - Navigation Light 2NM 135° White Stern Double Black Ex Zone 1&2
Specially certified for ATEX Zone 1 & 2, this navigation light ensures safety in hazardous environments while maintaining high visibility and durability.
- Mounting: Horizontal on 400-037 aluminum base, cable direction side, incl. HDPE base plate
- Number: 301-005ST-PRO-EX
- Light Color: White
- Dimensions: Ø92,5mm x 125,5mm (3.6"" x 4.9"")
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2NM
- Included in Package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power draw: 1 W
- Current consumption: 85 mA @ 12VDC, 50 mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Under 12M, 12-20M, 20-50M
- Min. feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.41 Kg (49.73 Oz)
- Connection: Plug connector
- EAN: 5704438038233
- UPC Code: 879343038366
-
