SKU:
BP 186805AST
$ 1.113,62
1-2 weeks delivery time
-
+
The Lopolight 301-005ST is a double stern navigation light designed for horizontal mounting, featuring a silver anodized aluminum body, PMMA lens, and a 2.5-meter shielded marine-grade cable. Certified by DNV and approved to international maritime standards, it offers white illumination visible up to 2 nautical miles, operates between -25°C and 55°C, and draws 1.3 W of power. The package includes the navigation light, mounting screws, and installation guide.
- Description
- Ask a Question
-

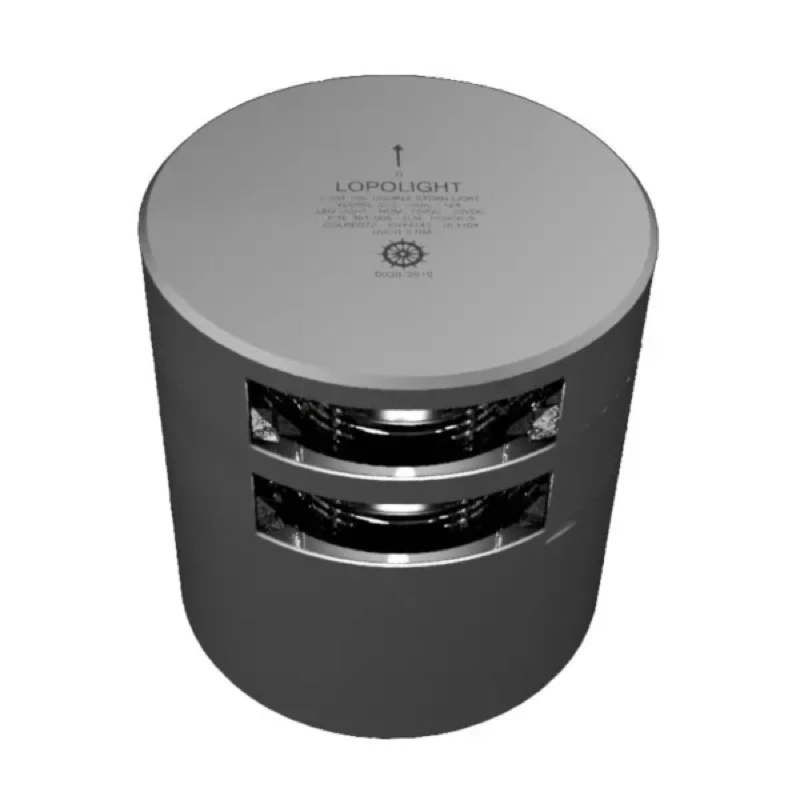

Lopolight 301-005ST - Navigation Light 2NM 135° White, Double Stern, Silver Anodized
This double stern navigation light is designed for horizontal mounting and includes a 2.5-meter shielded marine-grade cable. Certified by DNV, it meets international maritime standards for safe navigation.
- Item number: 186805AST
- Supplier article code: 301-005ST
- EAN code: 5704438010680
- Light color: White
- Dimensions (metric): Ø92.5 mm x 96.5 mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2 nautical miles
- Intensity: >5.4 cd
- Operating temperature range: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 1.3 W
- Current consumption: 110 mA @ 12 VDC, 50 mA @ 24 VDC
- Connection: 2.5 m cable
- Suitable vessel sizes: Under 12 m, 12-20 m, 20-50 m
- Minimum feed wire gauge: 0.5 mm² (AWG 22)
- Weight: 1.04 kg (36.68 oz)
- IP rating: IP68
- Included in package: 1 navigation light with precabled 2.5 m cable, 2 mounting screws (M6 x 8 mm), installation guide
- UPC Code: 879343010683
-
