SKU:
BP 186805AFB
$ 604,28
1-2 weeks delivery time
-
+
The Lopolight 301-005-FB is a horizontal stern navigation light with a flat base POM mounting system. Finished in silver anodized aluminum, it provides 2NM visibility, comes with a 2.5-meter shielded cable, is DNV certified, and operates at 10-32 VDC with 110 mA @ 12 VDC, suitable for vessels under 50 meters.
- Description
- Ask a Question
-

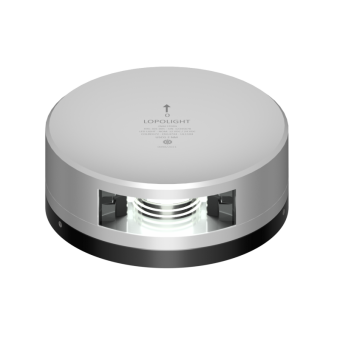

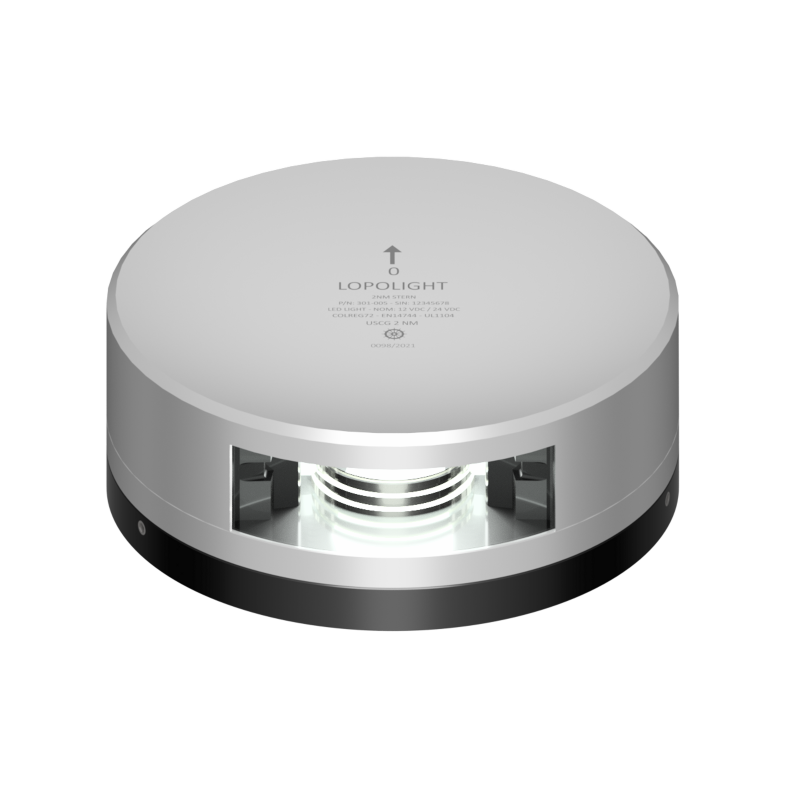

Lopolight 301-005-FB - Navigation Light 2NM 135° White, Stern, Silver with FB Base
This stern navigation light features a flat base (FB) POM mounting system for horizontal installation. It is equipped with a 2.5-meter shielded marine-grade cable and is certified by DNV for reliable maritime use.
- Article number: 186805AFB
- Supplier article code: 301-005-FB
- EAN code: 5704438043602
- Light color: White
- Dimensions (metric): Ø92.5 mm x 36 mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2 nautical miles
- Operating temperature range: -25°C to 55°C
- Mounting: Horizontal with flat base (FB) POM system
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 1.3 W
- Current consumption: 110 mA @ 12 VDC, 50 mA @ 24 VDC
- Connection: 2.5 m cable
- Suitable vessel sizes: Under 12 m, 12-20 m, 20-50 m
- Minimum feed wire gauge: 0.5 mm² (AWG 22)
- Weight: 0.57 kg (19.98 oz)
- IP rating: IP68
- Included in package: 1 navigation light with precabled 2.5 m cable, installation guide
- UPC Code: 879343043735
-
