SKU:
BP 186805AZFB
$ 604,28
1-2 weeks delivery time
-
+
The Lopolight 301-005-FB-B is a stern navigation light with a black anodized aluminum finish and a flat base (FB) POM mounting system for horizontal installation. It comes precabled with a 2.5-meter marine-grade cable, certified by DNV, and provides white light visible for 2 nautical miles. Suitable for vessels up to 50 meters, it has a power draw of 1.3 W and includes the light and installation guide.
- Description
- Ask a Question
-

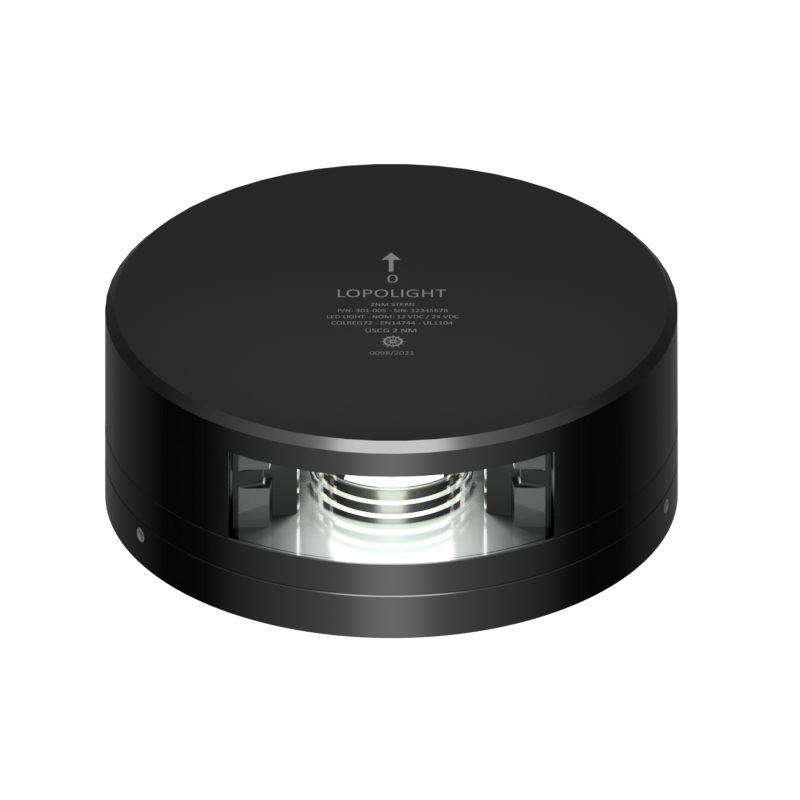

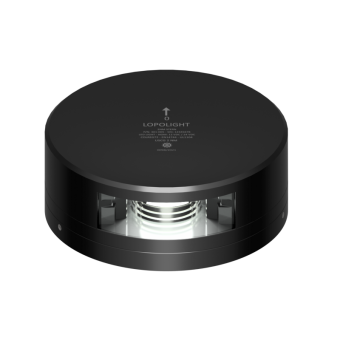

Lopolight 301-005-FB-B - Navigation Light 2NM 135° White, Stern, Black with FB Base
This stern navigation light features a black anodized aluminum finish and a flat base (FB) POM mounting system for horizontal installation. It includes a 2.5-meter shielded marine-grade cable and is certified by DNV for maritime use.
- Article number: 186805AZFB
- Supplier article code: 301-005-FB-B
- EAN code: 5704438043626
- Light color: White
- Dimensions (metric): Ø92.5 mm x 36 mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2 nautical miles
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal with flat base (FB) POM system
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 1.3 W
- Current consumption: 110 mA @ 12 VDC, 50 mA @ 24 VDC
- Connection: 2.5 m cable
- Suitable vessel sizes: Under 12 m, 12-20 m, 20-50 m
- Minimum feed wire gauge: 0.5 mm² (AWG 22)
- Weight: 0.57 kg (19.98 oz)
- IP rating: IP68
- Included in package: 1 navigation light with precabled 2.5 m cable, installation guide
- UPC Code: 879343043759
-
