The Lopolight 301-002ST is a vertical double port red navigation light with 2NM visibility and a 2.5-meter shielded cable. Made from silver anodized aluminum, it is DNV certified, operates at 10-32 VDC with 90 mA @ 12 VDC, suitable for vessels 12-50 meters.
- Description
- Ask a Question
-

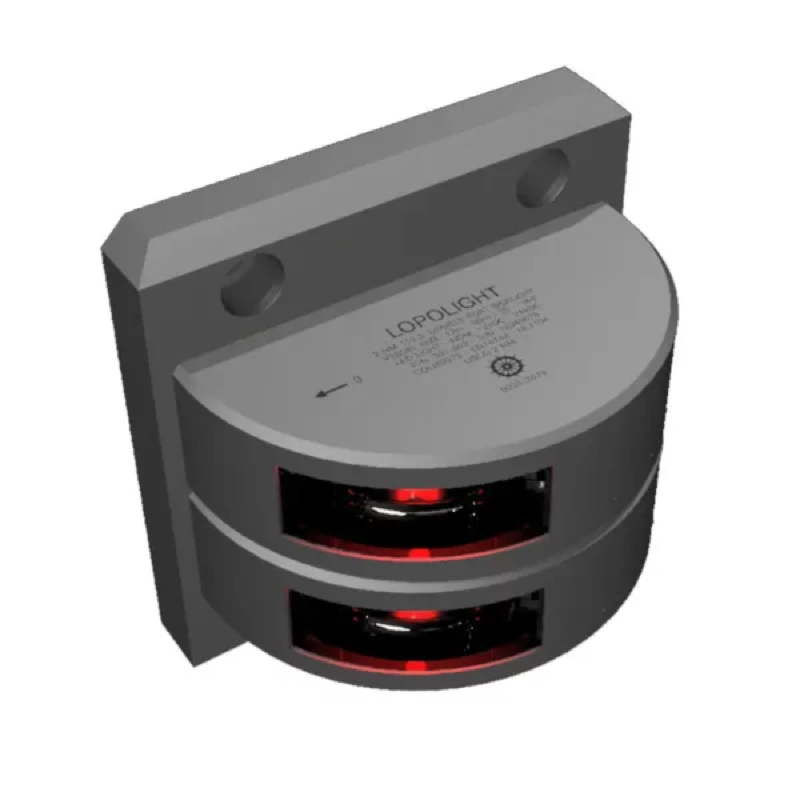

Lopolight 301-002ST - Navigation Light 2NM 112.5° Red, Double Port, Silver Anodized
This double port navigation light is vertically mounted and comes with a 2.5-meter shielded marine-grade cable. It carries DNV certification and complies with various international standards for marine navigation safety.
- Item number: 186802AST
- Supplier article code: 301-002ST
- EAN code: 5704438010383
- Light color: Red
- Dimensions (metric): 100 x 100 x 49.7 mm
- Dimensions (imperial): 3.9" x 3.9" x 1.95"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 2 nautical miles
- Intensity: >5.4 cd
- Operating temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 1.2 W
- Current consumption: 90 mA @ 12 VDC, 50 mA @ 24 VDC
- Connection: 2.5 m cable
- Vessel size suitability: 12-20 m and 20-50 m
- Minimum feed wire gauge: 0.5 mm² (AWG 22)
- Weight: 1.0 kg (35.27 oz)
- IP rating: IP68
- Included in package: 1 navigation light, precabled with 2.5 m cable, 2 mounting screws (M6 x 8 mm), installation guide
- UPC Code: 879343010386
-
