SKU:
BP 186801AW
$ 512,36
1-2 weeks delivery time
-
+
The Lopolight 301-001-WH is a vertically mounted green starboard light with a white ceramic coating for durability. It features 2NM visibility, a 2.5-meter shielded cable, DNV certification, and a current draw of 110 mA @ 12 VDC, suitable for vessels 12-50 meters.
- Description
- Ask a Question
-

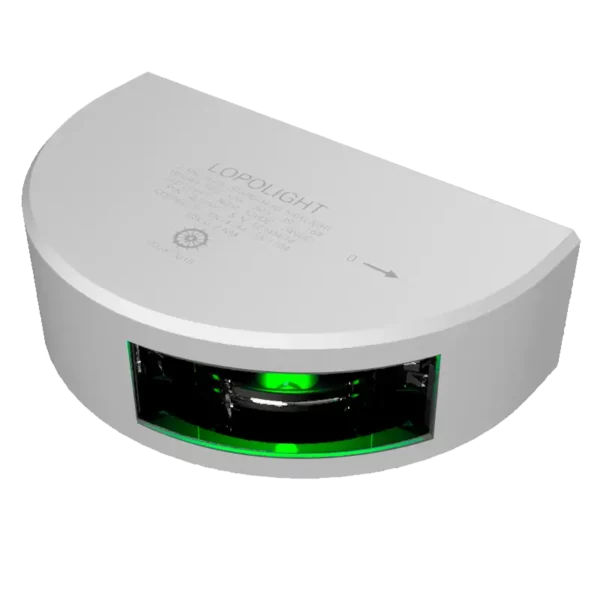

Lopolight 301-001-WH - Navigation Light 2NM 112.5° Green, Starboard, White Ceramic Coated
This navigation light is finished with a white ceramic coating for enhanced durability and aesthetics. It is vertically mounted and supplied with a 2.5-meter shielded marine-grade cable. The light is Wheelmarked and certified by DNV with full documentation available online.
- Article number: 186801AW
- Supplier article code: 301-001-WH
- EAN code: 5704438039254
- Light color: Green
- Dimensions (metric): 92.5 x 28 x 49.7 mm
- Dimensions (imperial): 3.6" x 1.1" x 1.95"
- Certification: Wheelmarked and certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 2 nautical miles
- Intensity: >5.4 cd
- Operating temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 2 W
- Current consumption: 110 mA @ 12 VDC, 60 mA @ 24 VDC
- Connection: 2.5 m cable
- Vessel size suitability: 12-20 m and 20-50 m
- Minimum feed wire gauge: 0.5 mm² (AWG 22)
- Weight: 0.31 kg (10.93 oz)
- IP rating: IP68
- Included in package: 1 navigation light, precabled with 2.5 m cable, 2 mounting screws (M6 x 8 mm), installation guide
- UPC Code: 879343039387
-
