SKU:
BP 300-138-WH
$ 4.953,06
1-2 weeks delivery time
-
+
The Lopolight 300-138-WH is a horizontally mounted 225° white masthead light with a durable white ceramic coating. Designed for vessels over 50 meters, it operates at 20-32VDC, draws 12W, provides 6NM visibility, and includes IP68 protection with a plug connector for reliable maritime operation.
- Description
- Ask a Question
-

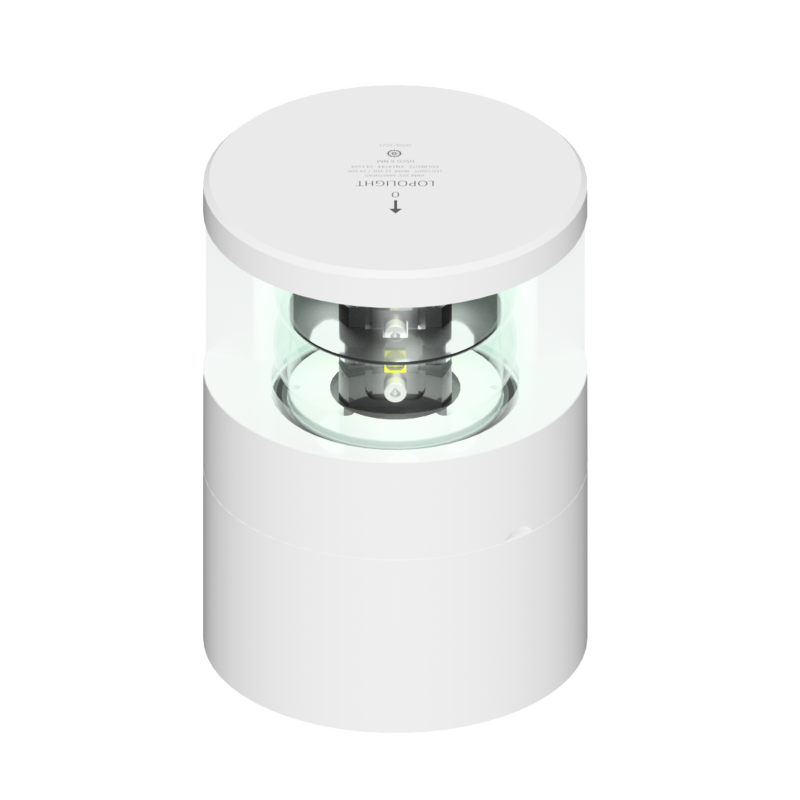

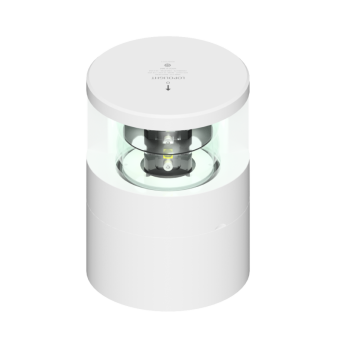

Lopolight 300-138-WH - Navigation Light 6NM 225° White Masthead Double White Coated
Designed for over-50-meter vessels, this wheelmarked navigation light provides durable ceramic coating and reliable horizontal mounting.
- White ceramic finish
- Aluminum mount base, white
- Cable down only
- Included standard: Black PE baseplate
- Option: white ceramic coated baseplate
- Number: 300-138-WH
- Light Color: White
- Dimensions metric: Ø92,5mm x 128mm
- Dimensions imperial: Ø3.6" x 5"
- Certification: Wheelmarked, based on DNV certification
- Intensity: >94cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 6nm
- Included in package: 1 navigation light
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438039414
- IP rating: IP68
- Power draw (W): 12
- UPC Code: 879343039547
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 0
- Current consumption (mA @ 24VDC): 580
- Vessel size: Over 50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.47 Kg / 51.85 Oz
-
