SKU:
BP 300-138-PRO-I-EX
$ 6.540,47
1-2 weeks delivery time
-
+
The Lopolight 300-138-PRO-I-EX combines high visibility, ice-class de-icing, and ATEX Zone 1 & 2 certification. Horizontally mounted on an EX/MIL aluminum base, it operates at 20-32VDC, draws 3W, and provides 6NM visibility, ensuring safety and reliable performance in demanding marine environments.
- Description
- Ask a Question
-

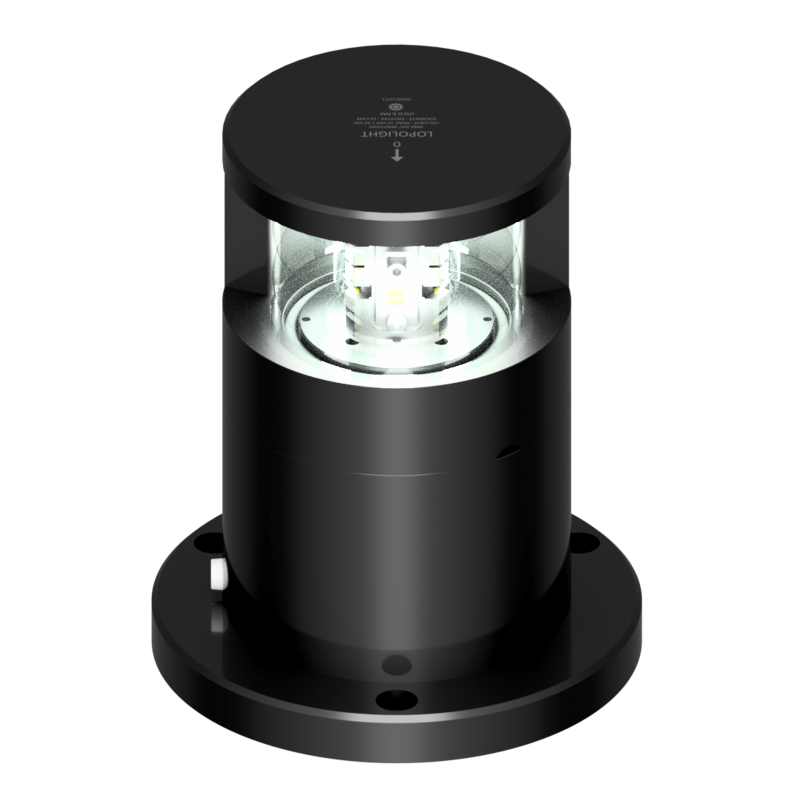

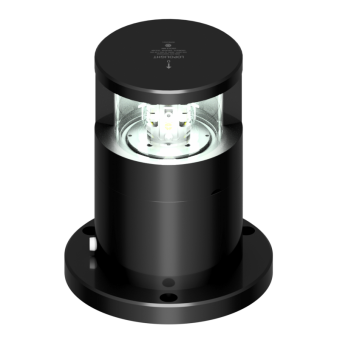

Lopolight 300-138-PRO-I-EX - Navigation Light 6NM 225° White Masthead Double Black Ex 1&2 Ice-Class
Engineered for demanding marine environments, this navigation light combines high visibility with certified safety and ice-class de-icing functionality.
- Certified for use in ATEX Zone 1 & 2
- Built-in de-icing function
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction side, including HDPE base plate
- No cable glands or ground strap included
- Number: 300-138-PRO-I-EX
- Light Color: White
- Dimensions metric: Ø92,5mm x 156,8mm
- Dimensions imperial: Ø3.6" x 6.2"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >94cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 6nm
- Included in package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438040717
- IP rating: IP68
- Power draw (W): 3
- UPC Code: 879343040840
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 0
- Current consumption (mA @ 24VDC): 290
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Over 50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.75 Kg / 61.72 Oz
-
