SKU:
BP 300-138-PRO-EX
$ 4.671,76
1-2 weeks delivery time
-
+
The Lopolight 300-138-PRO-EX is a horizontally mounted 225° white masthead light with black hard coat anodized aluminum construction, designed for vessels over 50 meters and certified for hazardous zones. It provides 6NM visibility, operates at 20-32VDC with a 3W power draw, and features IP68 protection with a plug connector.
- Description
- Ask a Question
-

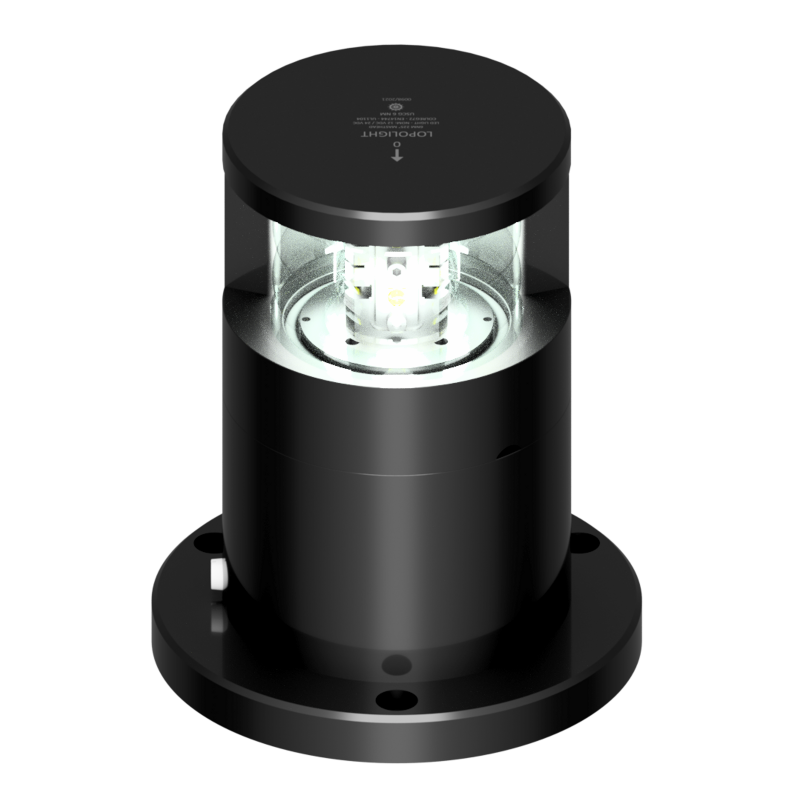

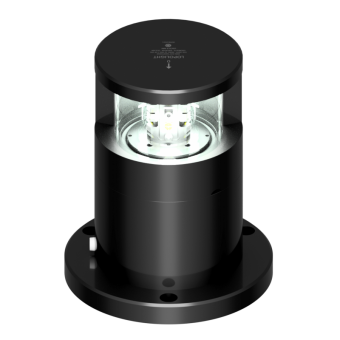

Lopolight 300-138-PRO-EX - Navigation Light 6NM 225° White Masthead Double Black Ex Zone 1&2
This navigation light is designed for vessels over 50 meters, offering high visibility and certified for hazardous zones. It ensures reliable performance in demanding maritime conditions.
- Number: 300-138-PRO-EX
- Light Color: White
- Dimensions (metric): Ø92,5mm x 156,8mm
- Dimensions (imperial): Ø3.6" x 6.2"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 6NM
- Intensity: >94cd
- Operating temperature: -25°C to 55°C
- Operating Voltage: 20-32VDC
- Power draw: 3W
- Current consumption: 0 mA @ 12VDC, 290 mA @ 24VDC
- Mounting: Horizontal, on 400-037-B aluminum base (IP68), cable direction side, includes HDPE base plate
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Connection: Plug connector
- IP rating: IP68
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Over 50M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.75 Kg / 61.72 Oz
- Included in Package: 1 Navigation light, Installation guide
- EAN: 5704438040007
- UPC Code: 879343040130
-
