SKU:
BP 300-138+114G2ST-B-CD
$ 7.555,29
1-2 weeks delivery time
-
+
The Lopolight 300-138+114G2ST-B-CD is a high-performance navigation light for large vessels, featuring a 6NM masthead double and 3NM 360° red and black light. It is mounted on an aluminum base with HDPE plate, certified by DNV, and approved to multiple maritime standards. With a visibility of 3NM, intensity over 94cd, IP68 rating, and durable construction including black anodized aluminum and PMMA lens, it operates at 20-32VDC with a power draw of 13W, suitable for vessels over 50 meters.
- Description
- Ask a Question
-

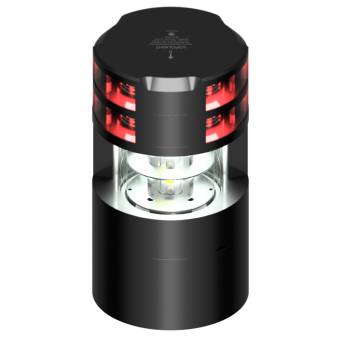

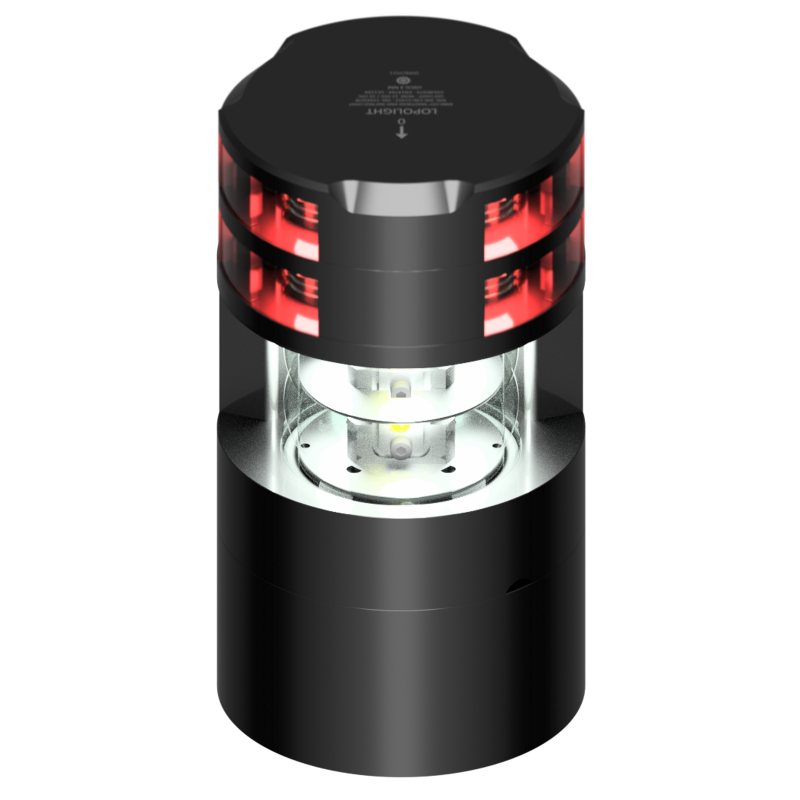

Lopolight 300-138+114G2ST-B-CD - Navigation Light 6NM Masthead Double + 3NM 360° Red Black
High-performance navigation light designed for large vessels, offering excellent visibility and robust construction for harsh marine environments.
- Mounted on cable down aluminum base with HDPE base plate
- Product Number: 300-138+114G2ST-B-CD
- Light Color: Red, White
- Dimensions (metric): Ø92,5mm x 169mm
- Dimensions (imperial): Ø3.6" x 6.6"
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3NM
- Intensity: >94cd
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- IP Rating: IP68
- Power Draw: 13W
- Connection: Plug connector
- Current Consumption: 0 mA @ 12VDC, 580 mA @ 24VDC
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.95 Kg / 68.78 Oz
- EAN: 5704438015166
- UPC Code: 879343015169
-
