SKU:
BP 186938112STCD
$ 7.555,29
1-2 weeks delivery time
-
+
The Lopolight 300-138+112G2ST-CD combines a double masthead 6NM white light with a 3NM 360° white light, mounted on a silver aluminum cable-down base. It is suitable for vessels over 50 meters, offering enhanced visibility and robust marine-grade construction.
- Description
- Ask a Question
-

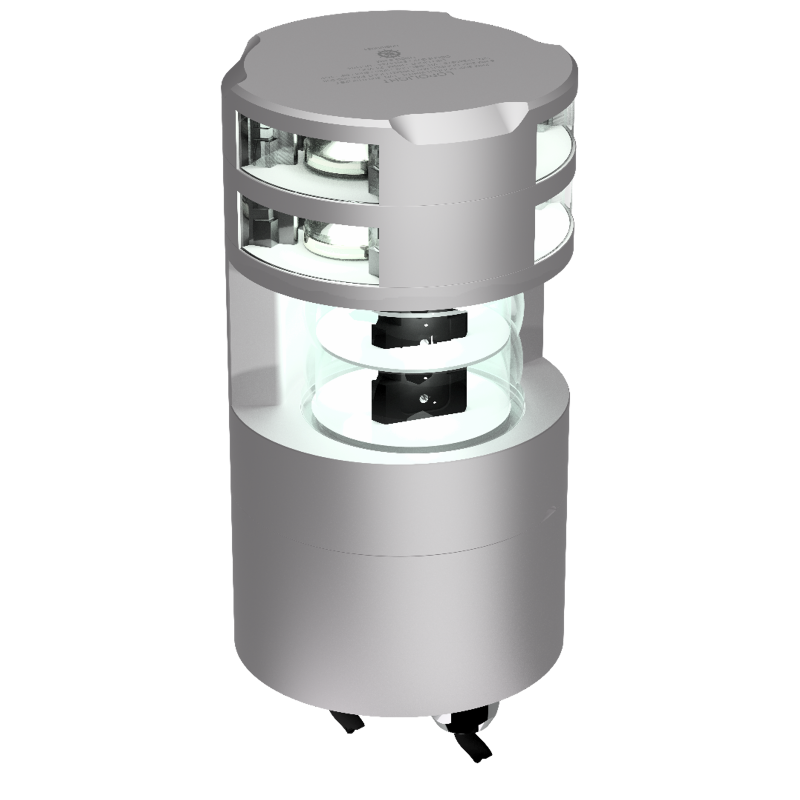

Lopolight 300-138+112G2ST-CD - Navigation Light 6NM Masthead, Double + 3NM 360° White, Double, Silver
This combined navigation light features a double masthead with 6NM visibility plus a 3NM 360° white light, mounted horizontally on a cable-down aluminum base. Built for vessels exceeding 50 meters, it offers enhanced visibility with robust marine-grade materials and certifications.
- Item number: 186938112STCD
- Supplier article code: 300-138+112G2ST-CD
- EAN code: 5704438012349
- Light color: White
- Dimensions (metric): Ø92.5mm x 169mm
- Dimensions (imperial): Ø3.6" x 6.6"
- Certification: DNV certified
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 6 nautical miles (masthead), 3 nautical miles (360°)
- Intensity: >94cd
- Operating temperature: -25°C to 55°C
- Mounting orientation: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 20-32 VDC
- Power draw: 13 W
- Current consumption at 12 VDC: 0 mA
- Current consumption at 24 VDC: 580 mA
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.95 Kg (68.78 Oz)
- IP rating: IP68
- Connection type: Plug connector
- Packaging unit: Piece
-
