SKU:
BP 300-136-PRO-I-EX
$ 5.170,37
1-2 weeks delivery time
-
+
The Lopolight 300-136-PRO-I-EX is a 6NM horizontal navigation light with ice-class functionality, certified for ATEX Zone 1 & 2. It is suitable for vessels over 50 meters, offering IP68 protection and reliable operation in hazardous environments.
- Description
- Ask a Question
-

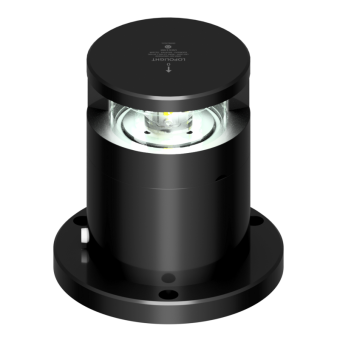

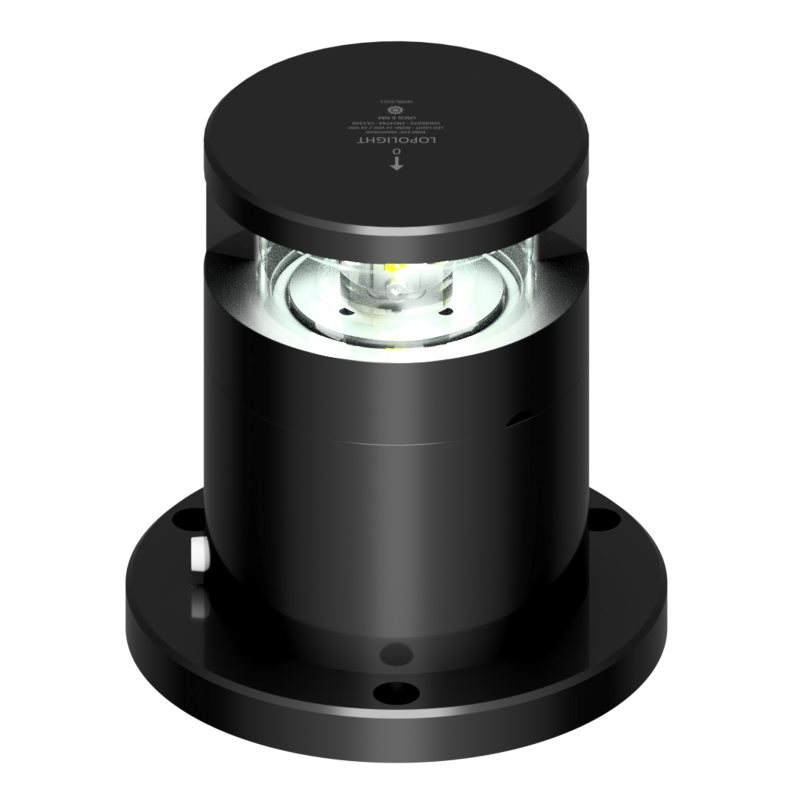

Lopolight 300-136-PRO-I-EX - Navigation Light 6NM 225° White Masthead Ex Zone 1&2 Ice-Class
Engineered for demanding maritime conditions, this navigation light ensures visibility and reliability in hazardous environments. Ideal for vessels over 50 meters, it features advanced certifications and ice-class functionality.
- Certified for use in ATEX Zone 1 & 2
- Built-in de-icing function for harsh conditions
- Mounted horizontally on 400-037 EX/MIL aluminum base
- Cable direction side, includes HDPE base plate
- No cable glands or ground strap included
- Number: 300-136-PRO-I-EX
- Light color: White
- Dimensions (metric): Ø92.5mm x 140.8mm
- Dimensions (imperial): Ø3.6" x 5.5"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >94cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 6nm
- Included in package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 20-32VDC
- IP rating: IP68
- Power draw: 3W
- Connection: Plug connector
- Current consumption: 0 mA @ 12VDC, 290 mA @ 24VDC
- Special attributes: Ice-class defroster, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Over 50M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.49 Kg / 52.55 Oz
- EAN: 5704438040724
- UPC Code: 879343040857
-
