SKU:
BP 300-136-PRO-EX
$ 3.693,13
1-2 weeks delivery time
-
+
The Lopolight 300-136-PRO-EX is a 6NM horizontally mounted navigation light certified for ATEX Zone 1 & 2 use. It features black anodized construction, IP68 protection, and is suitable for large vessels over 50 meters.
- Description
- Ask a Question
-

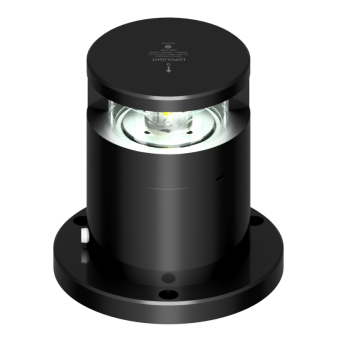

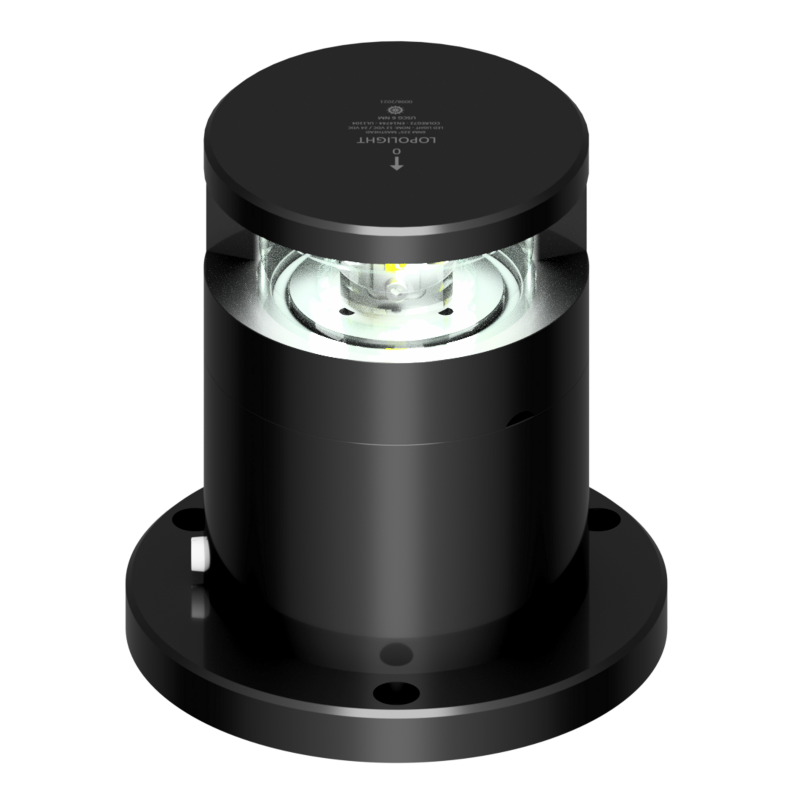

Lopolight 300-136-PRO-EX - Navigation Light 6NM 225° White Masthead Single Black Ex Zone 1&2
Reliable and certified navigation light designed for ATEX Zone 1 & 2 environments, ideal for large vessels over 50 meters. Provides excellent visibility while ensuring safe operation in hazardous areas.
- Certified for ATEX Zone 1 & 2 use
- Mounted horizontally on 400-037-B aluminum base (IP68)
- Cable direction: side, includes HDPE base plate
- No cable glands or ground strap included
- Model Number: 300-136-PRO-EX
- Light Color: White
- Dimensions: Ø92.5mm x 140.8mm (3.6"" x 5.5"")
- Certifications: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Light Intensity: >94cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility Range: 6 NM
- Package Includes: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438040533
- IP Rating: IP68
- Power Draw: 3 W
- Connection: Plug connector
- Current Consumption: 0 mA @ 12VDC, 290 mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.49 Kg (52.55 Oz)
-
