SKU:
BP 300-136+112G2ST-CD
$ 6.049,46
1-2 weeks delivery time
-
+
The Lopolight 300-136+112G2ST-CD is a high-performance navigation light for large vessels, offering a 6NM masthead and 3NM double 360° horizontal white light. Its silver anodized aluminum construction, IP68 rating, and horizontal mounting ensure robust operation, with 20-32VDC voltage and 13W power draw. Certified to DNV and other international maritime standards, it provides reliable visibility and durability in demanding environments.
- Description
- Ask a Question
-

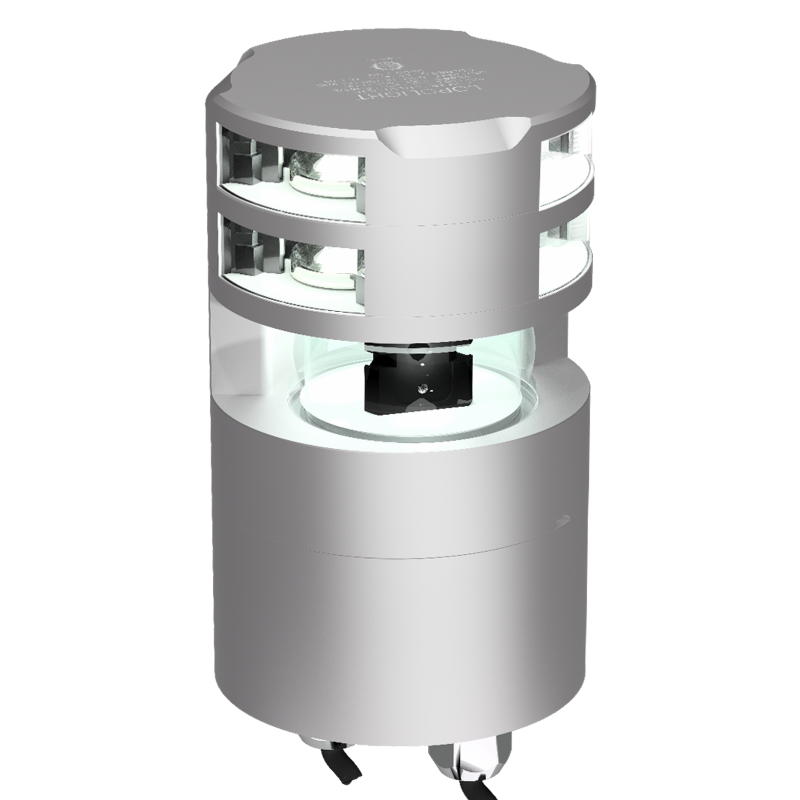

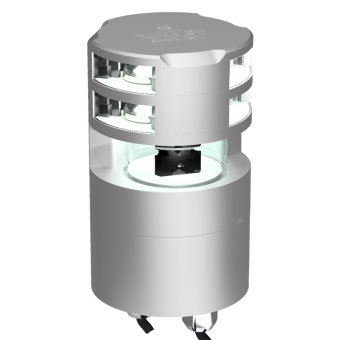

Lopolight 300-136+112G2ST-CD - Navigation Light 6NM Masthead + 3NM Double 360° White Horizontal Mount CD
High-performance navigation light designed for large vessels, offering reliable visibility and robust construction for demanding maritime environments.
- Number: 300-136+112G2ST-CD
- Light Color: White
- Dimensions (metric): Ø92,5mm x 151mm
- Dimensions (imperial): Ø3.6" x 5.9"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Intensity: >15cd
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- Power Draw: 13W
- Current Consumption (mA @ 12VDC): 0
- Current Consumption (mA @ 24VDC): 580
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 2 Kg / 70.54 Oz
- IP Rating: IP68
- Connection: Plug connector
- EAN: 5704438015258
- UPC Code: 879343015251
-
