SKU:
BP 300-114G2ST-PRO 180°
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The Lopolight 300-114G2ST-PRO 180° is a red navigation light designed for vessels over 50 meters, offering 180° visibility up to 3 nautical miles. It features a horizontally mounted IP68 POM base, side cable direction, HDPE base plate, high-quality cable glands, black hard coat anodized aluminum construction, PMMA lens, and stainless steel screws. Certified to DNV and approved to multiple international standards, it operates at 10-32VDC with a power draw of 2.5 W and functions in temperatures from -25°C to 55°C.
- Description
- Ask a Question
-

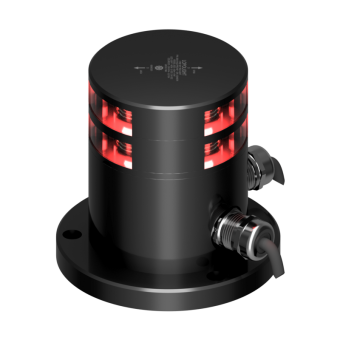

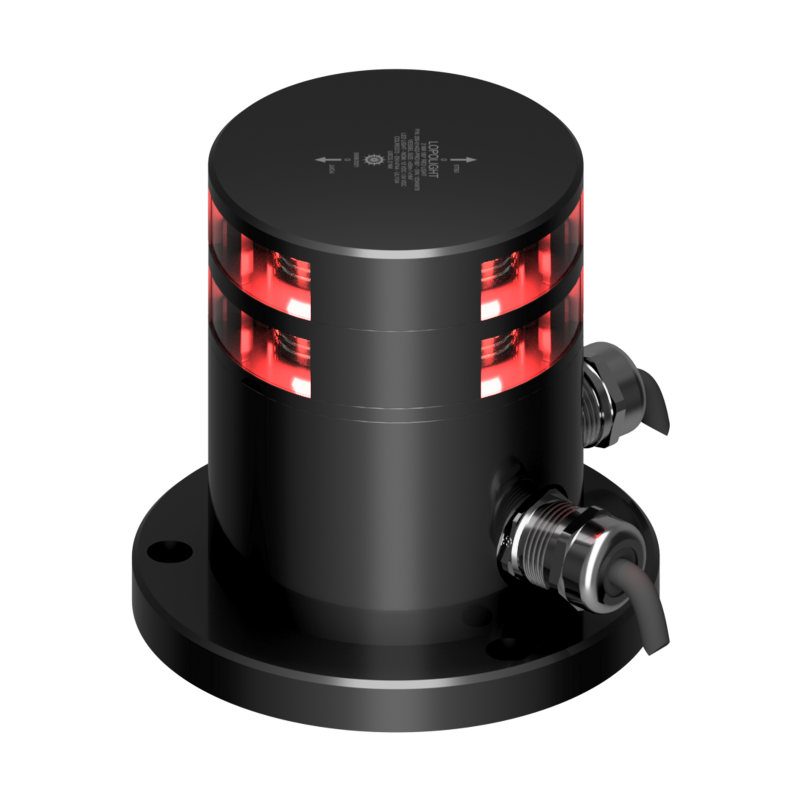

Lopolight 300-114G2ST-PRO 180° - Navigation Light 3NM 180° Red, Double, Black Anodized
This 180° navigation light provides reliable visibility for vessels over 50 meters, combining durable materials and certified performance.
- Horizontally mounted on 400-037 POM base (IP68)
- Cable direction: side
- Includes HDPE base plate
- Quality cable glands for 7-13mm (9/32"-1/2") cable diameter
- Number: 300-114G2ST-PRO 180°
- Light Color: Red
- Dimensions (metric): Ø92.5mm x 112mm
- Dimensions (imperial): Ø3.6" x 4.4"
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >15cd
- Visibility: 3nm
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power draw: 2.5 W
- Current consumption: 210 mA @ 12VDC, 100 mA @ 24VDC
- Connection: Plug connector
- Vessel size: Over 50M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.51 Kg (53.26 Oz)
- EAN: 5704438012387
- UPC Code: 879343012380
- IP Rating: IP68
-
