SKU:
BP 300-114G2ST-CD
$ 3.047,60
1-2 weeks delivery time
-
+
The Lopolight 300-114G2ST-CD is a silver anodized double red navigation light for horizontal mounting with a robust aluminum base and HDPE plate. It provides 3NM visibility, low power consumption, and meets DNV certification standards for vessels over 50 meters.
- Description
- Ask a Question
-

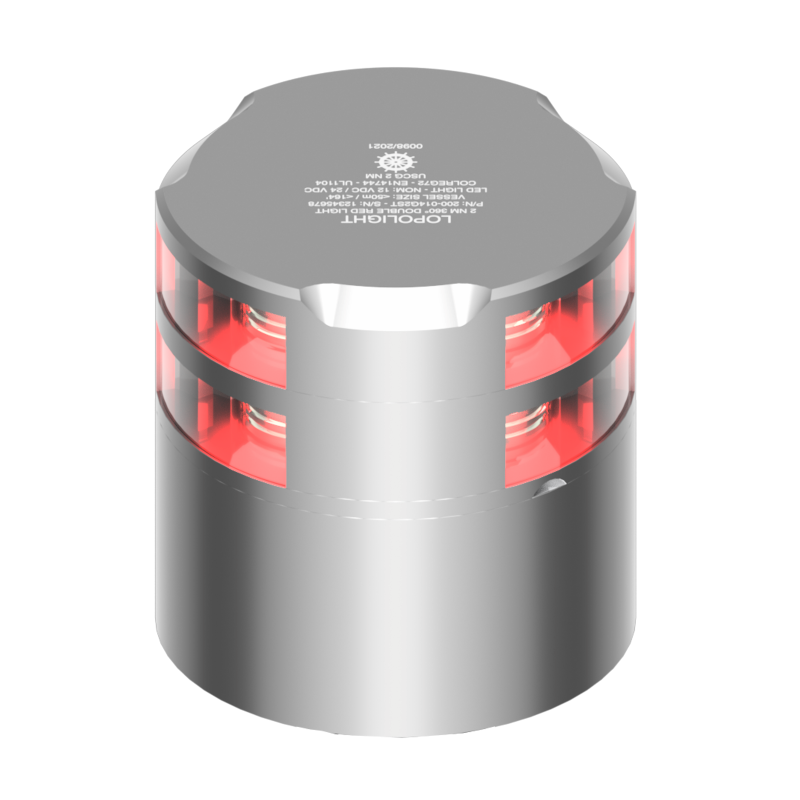

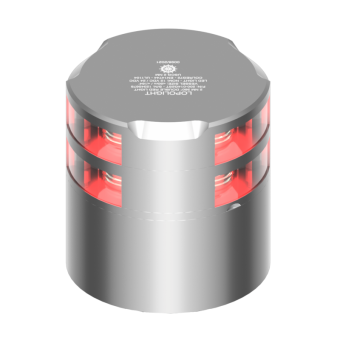

Lopolight 300-114G2ST-CD - Navigation Light 3NM 360° Red, Double, Silver Anodized
This silver anodized navigation light is designed for horizontal mounting with a robust aluminum base and HDPE plate, providing 3NM visibility with high-quality construction.
- Horizontally mounted on 400-035 aluminum base (IP68)
- Cable direction: down
- Includes HDPE base plate
- Quality cable glands (1 size included): 7-13mm (9/32" - 1/2") cable diameter
- Product Number: 300-114G2ST-CD
- Light Color: Red
- Dimensions: Ø92.5mm x 96.5mm / Ø3.6" x 3.8"
- Certification: DNV
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438012400
- IP rating: IP68
- Power draw: 2.9 W
- UPC Code: 879343012403
- Connection: Plug connector
- Current consumption: 210 mA @ 12VDC / 120 mA @ 24VDC
- Vessel size: Over 50M
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.23 Kg / 43.38 Oz
-
