SKU:
BP 300-114G2ST-B-CD
$ 3.047,60
1-2 weeks delivery time
-
+
The Lopolight 300-114G2ST-B-CD is a double red navigation light with horizontal mounting, IP68 protection, plug connector, and robust black anodized construction. It provides 3NM visibility and meets DNV certification standards for vessels over 50 meters.
- Description
- Ask a Question
-

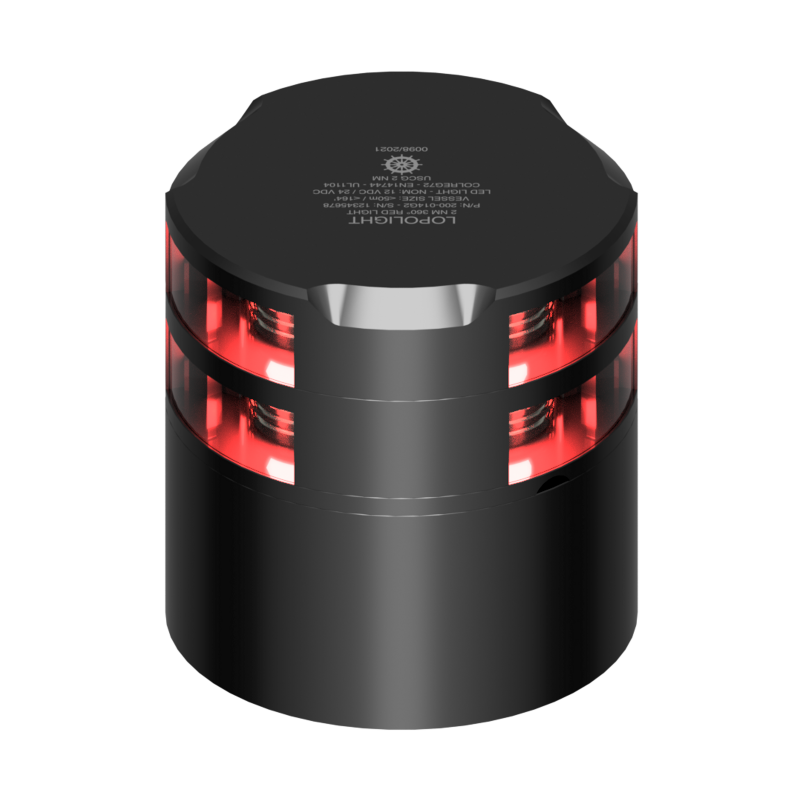

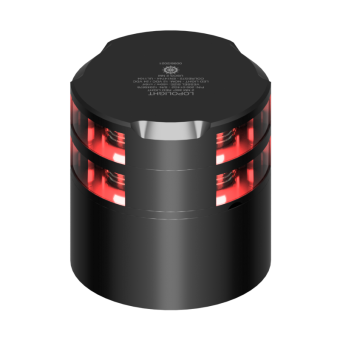

Lopolight 300-114G2ST-B-CD - Navigation Light 3NM 360° Red, Double, Black Anodized
This double red navigation light provides 3NM visibility and is constructed with robust materials for long-lasting performance. Ideal for vessels over 50M, it supports horizontal mounting and comes with a plug connector for easy installation.
- Horizontally mounted on 400-035, cable down base
- Includes HDPE base plate
- Number: 300-114G2ST-B-CD
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 96,5mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: DNV
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3NM
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438012417
- UPC Code: 879343012410
- IP rating: IP68
- Power draw: 2.9 W
- Connection: Plug connector
- Current consumption: 210 mA @ 12VDC / 120 mA @ 24VDC
- Vessel size: Over 50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.22 Kg / 43.03 Oz
-
