SKU:
BP 300-114G2ST-B-CD-180
$ 3.047,60
1-2 weeks delivery time
-
+
The Lopolight 300-114G2ST-B-CD-180 is a high-quality 180° red double navigation light for vessels over 50 meters. It features horizontal mounting on an aluminum base, IP68 protection, low power consumption, and DNV certification.
- Description
- Ask a Question
-

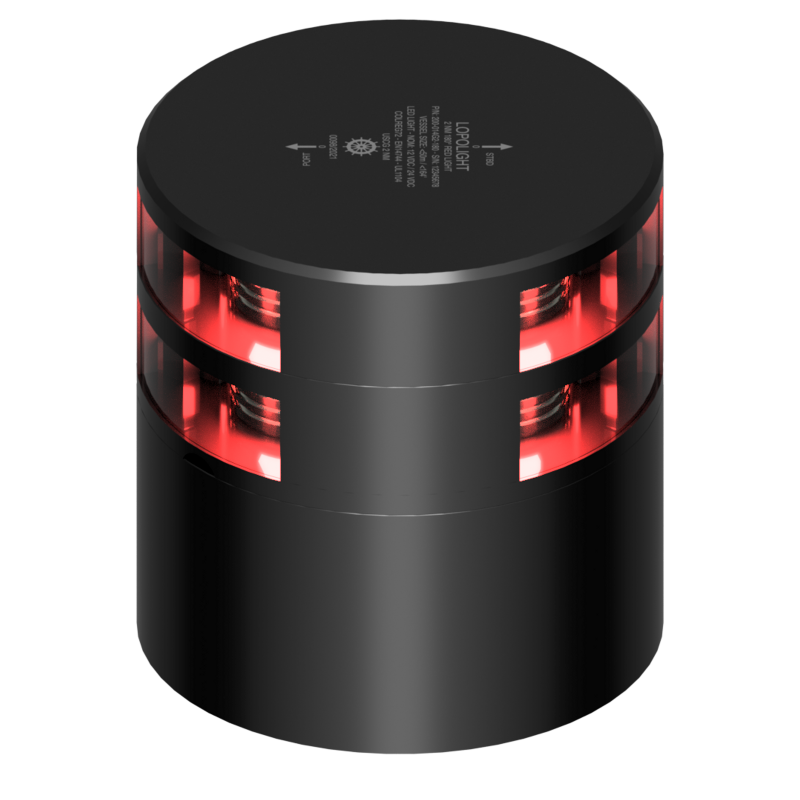

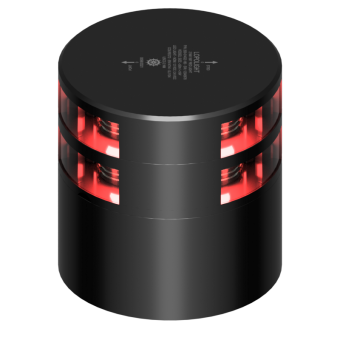

Lopolight 300-114G2ST-B-CD-180 - Navigation Light 3NM 180° Red, Double, Black Anodized
This high-quality navigation light is designed for maritime vessels over 50 meters, providing reliable red illumination with a 180° coverage angle.
- Mounting: Horizontally on 400-035 aluminum base (IP68), cable direction down
- Includes HDPE base plate
- Quality cable glands included: 7-13mm (9/32"-1/2") cable diameter
- Product number: 300-114G2ST-B-CD-180
- Light color: Red
- Dimensions: Ø92.5mm x 96.5mm (3.6" x 3.8")
- Certification: DNV
- Light intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 3nm
- Operating temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- IP rating: IP68
- Power draw: 2.5 W
- Connection type: Plug connector
- Current consumption: 210 mA @ 12VDC, 100 mA @ 24VDC
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.29 Kg (45.50 Oz)
- EAN: 5704438019386
- UPC Code: 879343019518
-
