The Lopolight 300-038-CD is a horizontally mounted double white navigation light with a fixed downward cable direction and HDPE base plate. Offering 5 nautical mile visibility and 225° beam, it is made of silver anodized aluminum, consumes 7 W, and is suitable for vessels 20-50 meters with IP68 certification.
- Description
- Ask a Question
-

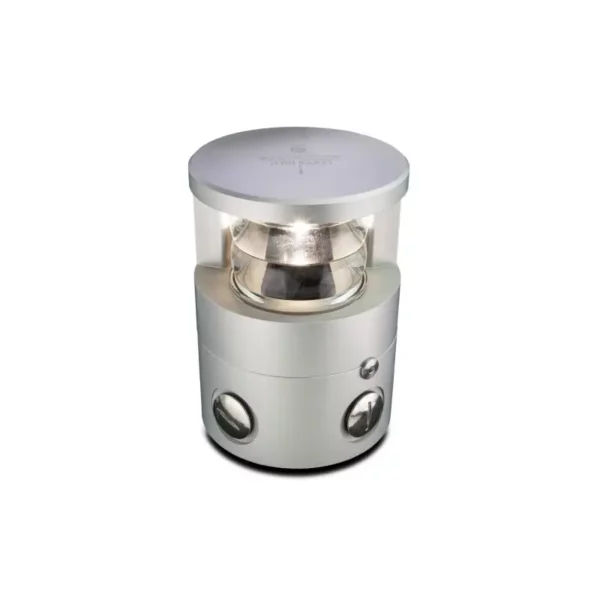

Lopolight 300-038-CD - Navigation Light 5NM 225° White, Masthead, Double, Silver Anodized
This navigation light features a horizontal mounting design on the 400-035 aluminum base (IP68), with a fixed cable direction downwards. It includes an HDPE base plate and comes with one size of quality cable gland.
- Number: 300-038-CD
- Light Color: White
- Dimensions: Ø92.5mm x 128mm (Ø3.6" x 5")
- Certification: Certified by DNV
- Intensity: Greater than 52cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 5 nautical miles
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32 VDC
- Power Draw: 7 W
- Current Consumption at 12 VDC: 0 mA
- Current Consumption at 24 VDC: 290 mA
- Connection: Plug connector
- Vessel Size Suitability: 20-50 meters
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 1.45 kg (51.14 oz)
- Quality Cable Glands Included: One size (7-13mm / 9/32" - 1/2" cable diameter)
- IP Rating: IP68
- EAN: 5704438006393
- UPC Code: 879343006396
- Packaging Unit: Piece
- Supplier Article Code: 300-038-CD
- Article Number: 186838CD
-
