SKU:
BP 300-038-B-UL 10M
$ 4.143,97
1-2 weeks delivery time
-
+
The Lopolight 300-038-B-UL 10M navigation light is engineered for horizontal installation on a 400-036-B Ultra-low base, with a 19m cable and visibility up to 5nm. Suitable for vessels up to 50 meters, it features black anodized aluminum construction, operates at 20-32VDC, and draws 7W. The light meets international certifications including DNV, COLREG72, and USCG, and has a minimum feed wire gauge of 0.5mm² AWG22.
- Description
- Ask a Question
-

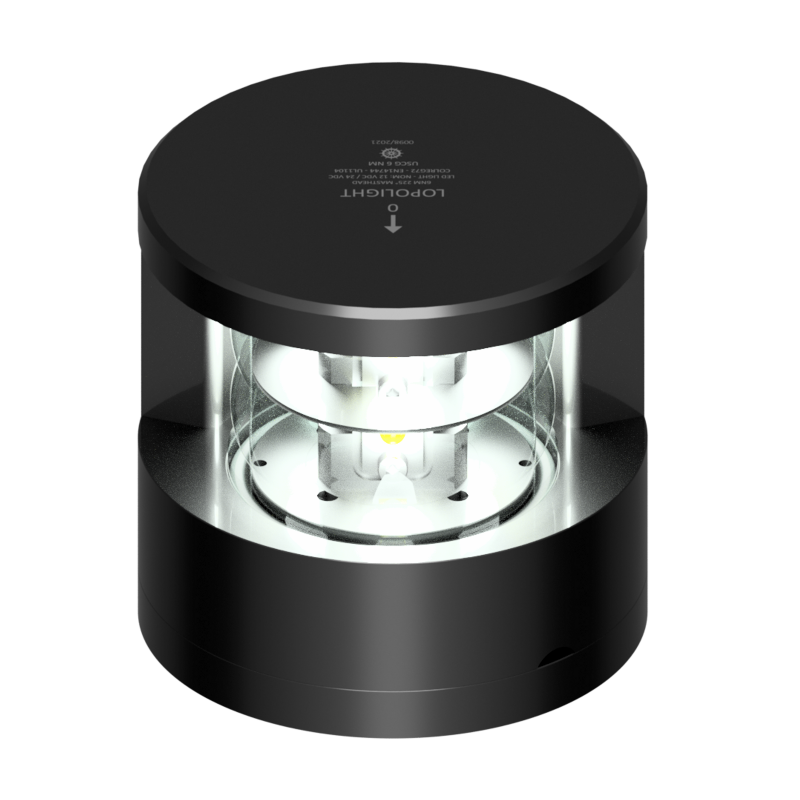

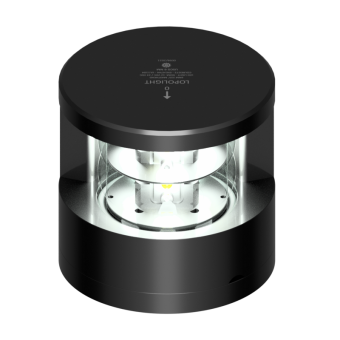

Lopolight 300-038-B-UL 10M - Navigation Light 5NM 225° White, Masthead, Double, Black Anodized
Engineered for horizontal installation on a 400-036-B Ultra-low base, this navigation light comes with a 19m cable and delivers superior visibility for vessels up to 50 meters long.
- Number: 300-038-B-UL 10M
- Light Color: White
- Dimensions (metric): Ø92,5mm x 80mm
- Dimensions (imperial): Ø3.6"" x 3.1""
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >52cd
- Visibility: 5nm
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438015357
- IP Rating: IP68
- Power Draw: 7 W
- Connection: 10m cable
- Current Consumption @ 12VDC: 0 mA
- Current Consumption @ 24VDC: 290 mA
- Vessel Size: 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.6 Kg / 56.43 Oz
-
