SKU:
BP 300-038-B-CD
$ 3.936,72
1-2 weeks delivery time
-
+
The Lopolight 300-038-B-CD is a horizontal double masthead light designed for vessels 20-50 meters, offering 5NM white visibility. It mounts on a 400-035 aluminum base with cable direction down and includes an HDPE base plate and cable glands. Made of black anodized aluminum, PMMA lens, and stainless steel screws, it operates at 20-32VDC, draws 7W, and consumes 290 mA at 24VDC. The light is DNV certified, IP68 rated, and approved to multiple international standards.
- Description
- Ask a Question
-

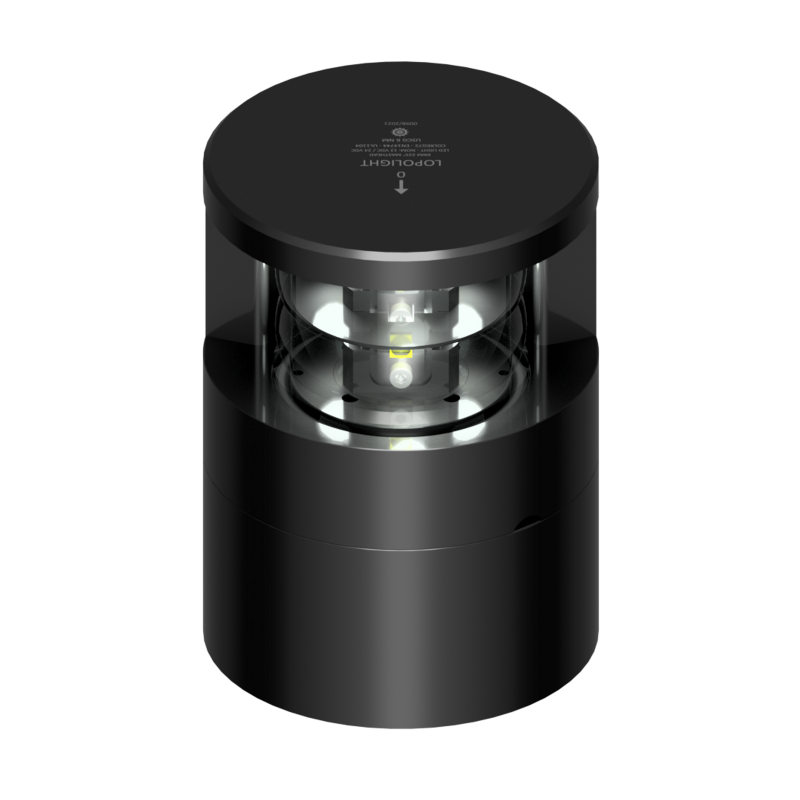

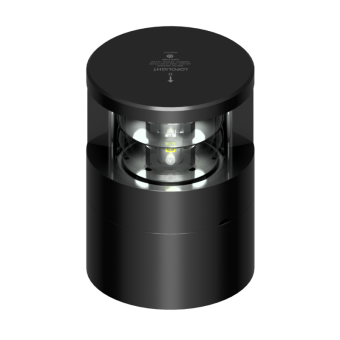

Lopolight 300-038-B-CD - Navigation Light 5NM 225° White, Masthead, Double, Black Anodized
This horizontal double masthead light provides excellent 5NM visibility for vessels of 20-50 meters. Its durable black anodized aluminum body and plug connector make installation simple and secure.
- Mounting: Horizontally on 400-035 aluminum base (IP68)
- Cable direction: Down
- Includes HDPE base plate
- Quality cable glands for 7-13mm (9/32"-1/2") cable diameter
- Number: 300-038-B-CD
- Light color: White
- Dimensions: Ø92.5mm x 128mm (metric), Ø3.6" x 5" (imperial)
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >52cd
- Visibility: 5nm
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 20-32VDC
- Connection: Plug connector
- Current consumption: 0 mA @ 12VDC, 290 mA @ 24VDC
- Power draw: 7 W
- Vessel size: 20-50M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.41 Kg / 49.73 Oz
- EAN: 5704438013391
- UPC Code: 879343013394
- IP rating: IP68
-
