The Lopolight 300-036 is a horizontally mounted white masthead navigation light with a 5 nautical mile visibility and a 225° beam. It features a HDPE base plate, two cable gland sizes for 7-13 mm cables, and is suitable for vessels between 20 and 50 meters. Constructed with silver anodized aluminum, PMMA lens, and stainless steel screws, it operates at 20-32 VDC, consuming 7 W, and is certified by DNV.
- Description
- Ask a Question
-

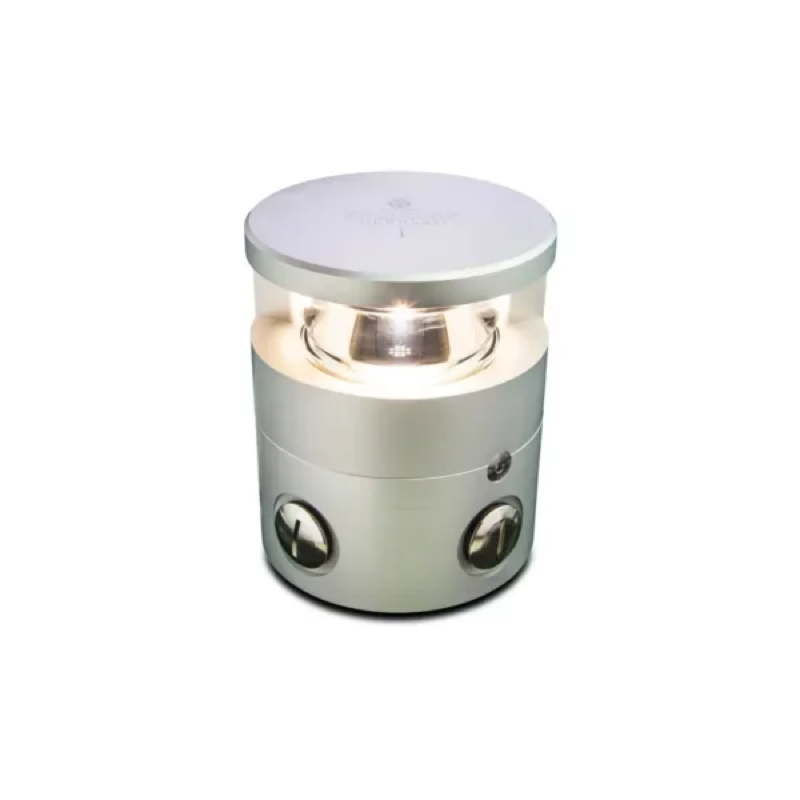

Lopolight 300-036 - Navigation Light 5NM 225° White, Masthead, Silver Anodized
This horizontally mounted navigation light includes a HDPE base plate and two cable gland sizes to fit cable diameters from 7 to 13 mm (9/32" - 1/2"). It is designed for vessels between 20 and 50 meters and offers reliable 5 nautical mile visibility with a white light beam spanning 225°.
- Article number: 186836
- Light color: White
- Dimensions: Ø92.5mm x 111.8mm (Ø3.6" x 4.4")
- Certification: Certified by DNV
- Intensity: >52 cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 5 nautical miles
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal on 400-034 aluminum base (IP68)
- Cable direction options: Side or down
- Included: HDPE base plate, quality cable glands (7-13 mm diameter)
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 20-32 VDC
- Power draw: 7 W
- Current consumption: 0 mA @ 12VDC, 290 mA @ 24VDC
- Vessel size suitability: 20-50 meters
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.35 kg (47.61 oz)
- Connection: Plug connector
- EAN: 5704438001657
- UPC Code: 879343001650
-
