SKU:
BP 300-036-B-CD
$ 2.405,77
1-2 weeks delivery time
-
+
The Lopolight 300-036-B-CD navigation light is designed for vessels between 20 and 50 meters, providing reliable white illumination with a 5 nautical mile visibility. It mounts horizontally on a 400-035 aluminum base with cable direction down and includes an HDPE base plate and high-quality cable glands. Constructed from black anodized aluminum, PMMA lens, and stainless steel screws, it operates at 20-32VDC, drawing 7W with a current of 290 mA at 24VDC. The light is DNV certified, IP68 rated, and approved to multiple international standards.
- Description
- Ask a Question
-

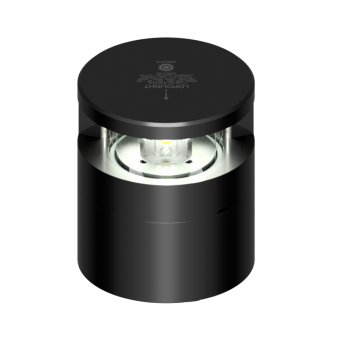

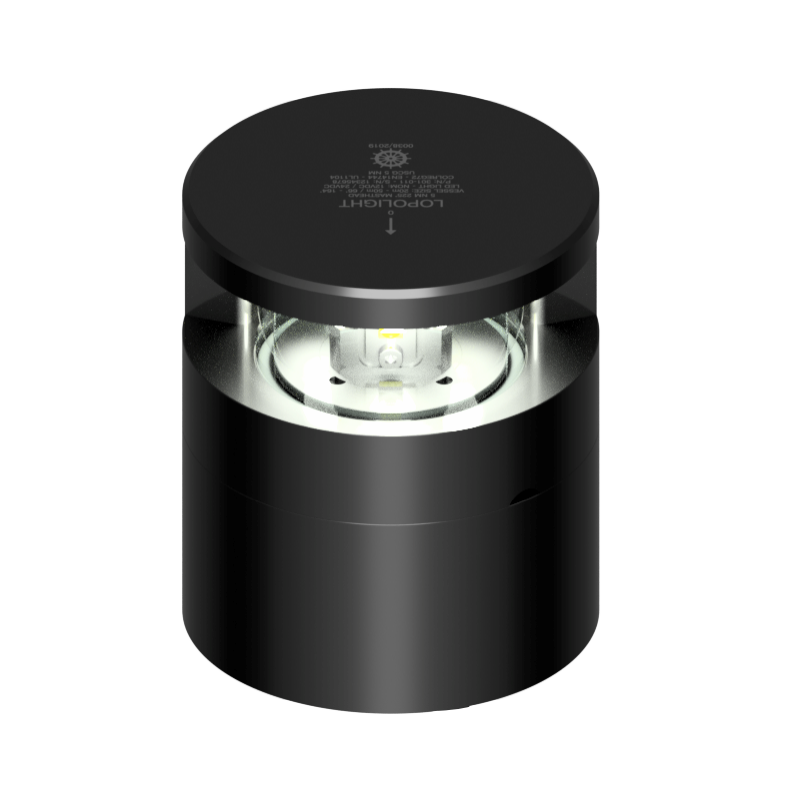

Lopolight 300-036-B-CD - Navigation Light 5nm 225° White, Masthead, Black Anodized
This high-quality navigation light is designed for vessels between 20 and 50 meters. It provides reliable white illumination with excellent visibility and robust construction for harsh marine environments.
- Mounting: Horizontally mounted on 400-035 aluminum base (IP68), cable direction down
- Included Accessories: HDPE base plate, high-quality cable glands
- Cable Gland Size: 7-13mm (9/32"-1/2") cable diameter
- Light Color: White
- Light Number: 300-036-B-CD
- Intensity: >52cd
- Visibility: 5 nautical miles
- Operating Temperature: -25°C to 55°C
- Mounting Orientation: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 20-32VDC
- Power Draw: 7 W
- Current Consumption: 0 mA @ 12VDC, 290 mA @ 24VDC
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Vessel Size: 20-50 meters
- Weight: 1.02 Kg (35.98 Oz)
- Dimensions (Metric): Ø92.5mm x 111.8mm
- Dimensions (Imperial): Ø3.6" x 4.4"
- Certifications: DNV certified
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- IP Rating: IP68
- EAN: 5704438013384
- UPC Code: 879343013387
-
