SKU:
BP 201-023S-ST-PRO-EX
$ 3.621,85
1-2 weeks delivery time
-
+
The Lopolight 201-023S-ST-PRO-EX is a double yellow navigation light for hazardous environments, offering 4 nautical miles visibility. It is certified for ATEX Zone 1 & 2, features a black hard coat anodized aluminum body, horizontal mounting, and operates from -25°C to 55°C with a power draw of 2W.
- Description
- Ask a Question
-

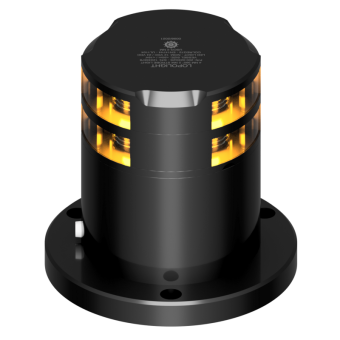

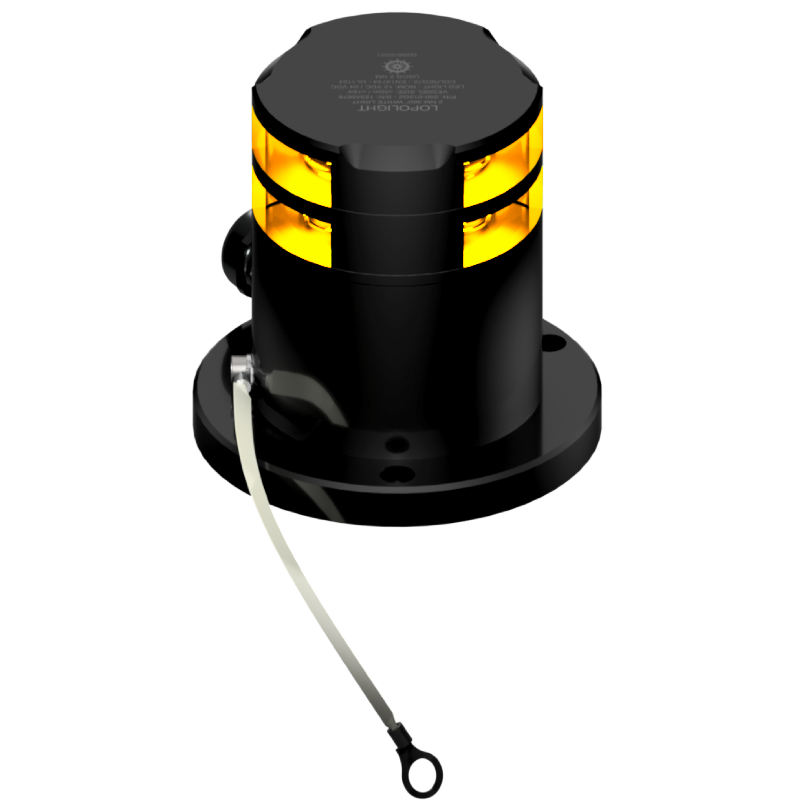

Lopolight 201-023S-ST-PRO-EX - Navigation Light 4NM 360° Yellow Strobe, Double, EX Zone 1&2
This double navigation light offers robust functionality and is certified for use in hazardous environments (ATEX Zone 1 & 2), providing reliable illumination in challenging conditions.
- Model Number: 201-023S-ST-PRO-EX
- Light Color: Yellow
- Dimensions (Metric): Ø92,5mm x 125,5mm
- Dimensions (Imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR), COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2W
- Current Consumption (mA @ 12VDC): 170
- Current Consumption (mA @ 24VDC): 105
- Vessel Size: All Sizes
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.82 Kg (28.92 Oz)
- Connection: Plug connector
- Included in Package: 1 Navigation light, Installation guide
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- EAN: 5704438040069
- UPC Code: 879343040192
-
