SKU:
BP 201-022-FB
$ 1.002,93
1-2 weeks delivery time
-
+
The Lopolight 201-022-FB is a horizontally mounted navigation light with a flat base POM mounting system and a 0.7-meter cable. It features a silver anodized aluminum body, provides 2 nautical mile visibility, and is suitable for vessels of all sizes. Certified to IEC 60945, it operates between -25°C to 55°C with a power draw of 3.7W and a current consumption of 225 mA at 12VDC or 156 mA at 24VDC. The package includes the pre-cabled light and an installation guide.
- Description
- Ask a Question
-

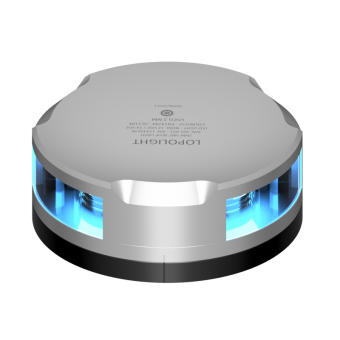

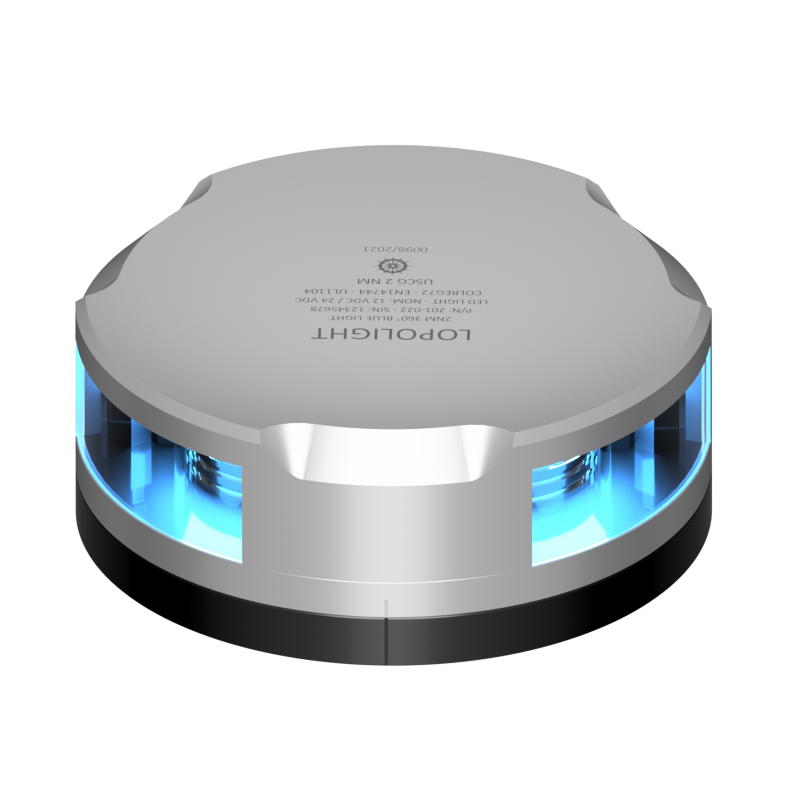

Lopolight 201-022-FB - Navigation Light 2NM 360° Blue Fueling, Silver W/FB Base
This horizontally mounted navigation light includes a flat base (FB) POM mounting system and a 0.7 meter cable. Tested to IEC 60945, it features a silver anodized aluminum body and offers 2 nautical mile visibility, suitable for all vessel sizes.
- Model Number: 201-022-FB
- Light Color: Blue
- Dimensions (metric): Ø92.5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Tested to IEC 60945
- Approvals: IEC 60945
- Visibility: 2 nautical miles
- Package Includes: 1 navigation light pre-cabled with 0.75 meter shielded marine grade cable, installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- EAN: 5704438043190
- IP Rating: IP68
- Power Draw: 3.7 W
- UPC Code: 879343043322
- Connection: 0.7 meter cable
- Current Consumption: 225 mA @ 12VDC, 156 mA @ 24VDC
- Recommended Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 0.42 Kg (14.97 Oz)
- Vessel Size Compatibility: All sizes
-
