SKU:
BP 201-022-CD
$ 1.084,24
1-2 weeks delivery time
-
+
The Lopolight 201-022-CD is a 2NM blue fueling navigation light with silver anodized finish, plug connector, and IP68 aluminum base. It mounts horizontally with cable down via M16 glands, operates at 10-32VDC with 225mA @ 12VDC and 156mA @ 24VDC, and provides 2 nautical miles of visibility for vessels of all sizes.
- Description
- Ask a Question
-

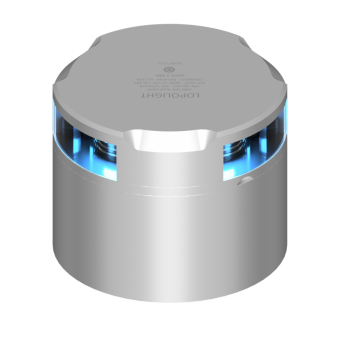

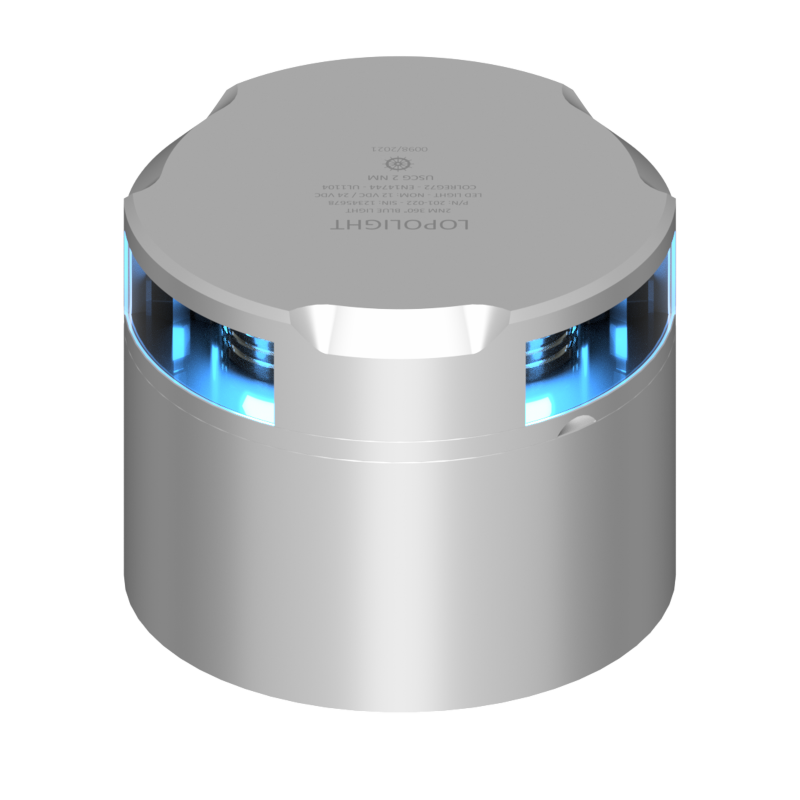

Lopolight 201-022-CD - Navigation Light 2NM 360° Blue Fueling, Silver W/Conn & Alu-Base CD
This silver anodized navigation light features a durable aluminum base rated IP68 and a plug connector for easy cable connection. Designed for horizontal mounting with cable down M16 glands, it is tested to IEC 60945 standards and provides reliable 2 nautical mile visibility. Suitable for vessels of all sizes.
- Model Number: 201-022-CD
- Light Color: Blue
- Dimensions (metric): Ø92.5mm x 74.5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: Tested to IEC 60945
- Approvals: IEC 60945
- Visibility: 2 nautical miles
- Intensity: >5.4 cd
- Package Includes: 1 navigation light
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- EAN: 5704438045217
- IP Rating: IP68
- UPC Code: 879343045340
- Connection: Plug connector
- Current Consumption: 225 mA @ 12VDC, 156 mA @ 24VDC
- Vessel Size Compatibility: All sizes
-
