SKU:
BP 201-021-WH
$ 1.570,12
1-2 weeks delivery time
-
+
The Lopolight 201-021-WH is a 3NM white masthead navigation light designed for power boats with a white ceramic coated aluminum finish. It mounts horizontally with a 0.7-meter cable and standard black PE baseplate, operates at 10-32VDC with 300mA @ 12VDC and 148mA @ 24VDC, and provides 3 nautical miles of visibility for vessels 12-20 meters.
- Description
- Ask a Question
-

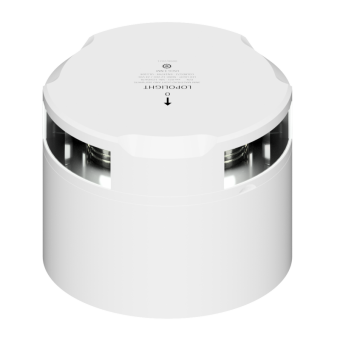

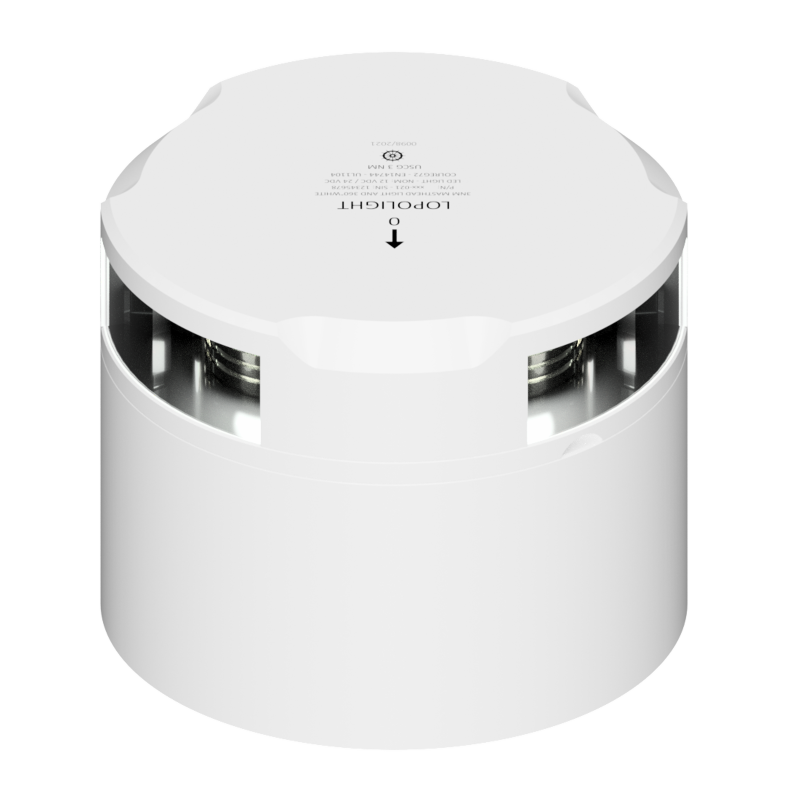

Lopolight 201-021-WH - Navigation Light 3NM Masthead/360° White, White Ceramic Coated
Designed specifically for power boats, this navigation light features a white ceramic finish with a white aluminum mounting base. It is mounted horizontally with cable directed downwards and includes a standard black PE baseplate, with an option for a white ceramic coated baseplate. Certified by DNV, it ensures dependable visibility for vessels between 12 and 20 meters.
- Model Number: 201-021-WH
- Light Color: White
- Dimensions (metric): Ø92.5mm x 46mm
- Dimensions (imperial): Ø3.6" x 1.8"
- Certification: DNV certified
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3 nautical miles
- Package Includes: 1 navigation light pre-cabled with 0.75 meter shielded marine grade cable, 2 mounting screws (M6 x 8 mm), installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- EAN: 5704438040250
- IP Rating: IP68
- Power Draw: 3.6 W
- UPC Code: 879343040383
- Connection: 0.7 meter cable
- Current Consumption: 300 mA @ 12VDC, 148 mA @ 24VDC
- Recommended Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Vessel Size Compatibility: 12-20 meters
-
